Diagnostic Flowchart

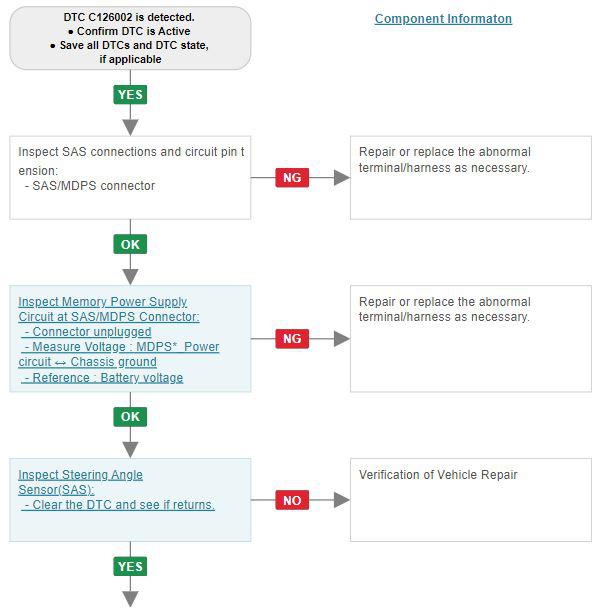

Fig 1: 1 Of 2
G14457030Courtesy of HYUNDAI MOTOR AMERICA

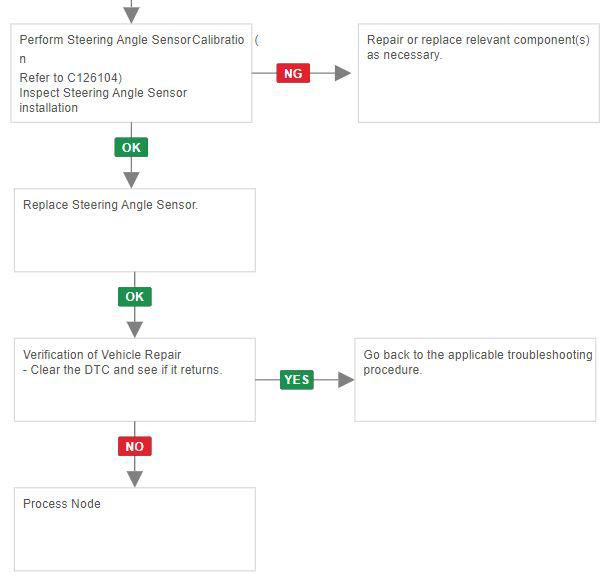

Fig 2: 2 Of 2
G00612247Courtesy of HYUNDAI MOTOR AMERICA
NOTE: * In a case of replacing Steering Angle Sensor, perform "Steering Angle Sensor Calibration" in "Vehicle S/W Management" menu of the GDS.
