Repair Procedures: Removal
- Remove the roof trim.

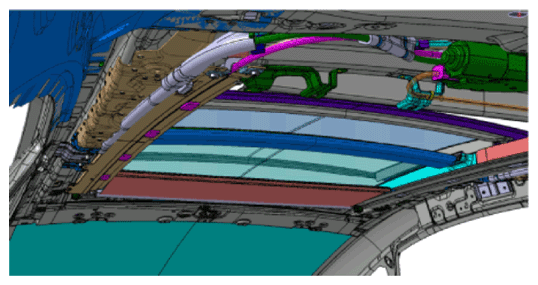

- Open the roller blind using the panorama sunroof switch.
Information
- Leave 10 - 20cm (0.3937 - 0.7874 in) of the roller blind unopened.

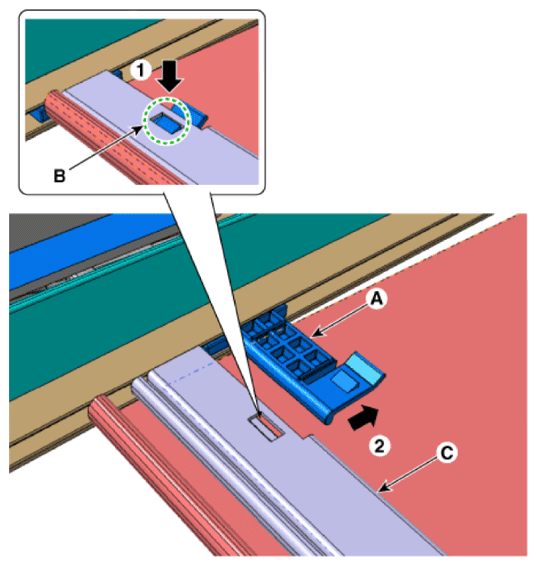

- Remove the roller blind bar (C) by pressing the top part of the lock pin (B) located on the both sides of the roller blind shoe (A).
- Put a fixed pin (B) into the hole located inside the groove of the right side roller blade side bracket (A). Be careful not to release tension.

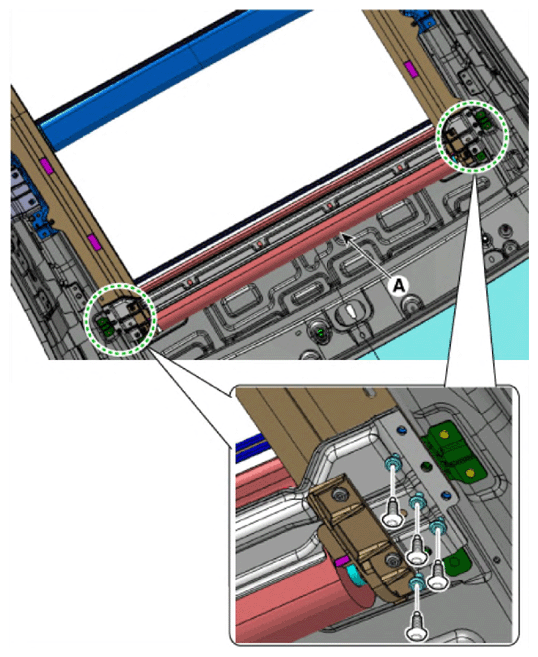

- Remove the roller blind lower support (A) by loosening the mounting screws.
