Repair Procedures: Installation

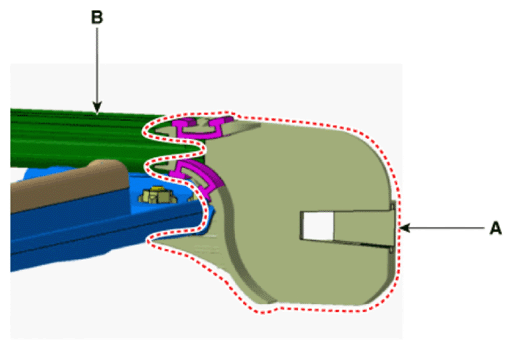

  1. Install the roller blind side bracket (A) fit into the guide groove (B).
    G14526328Courtesy of HYUNDAI MOTOR AMERICA

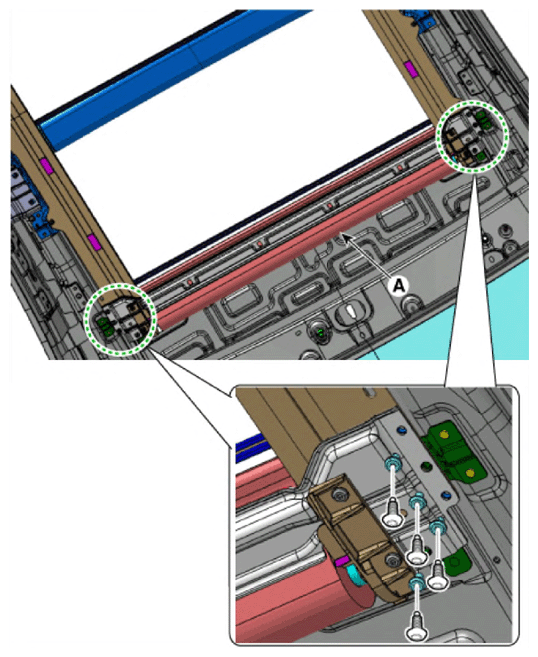

  2. Tighten the mounting screws after installing the roller blind lower support (A).
    G14526329Courtesy of HYUNDAI MOTOR AMERICA

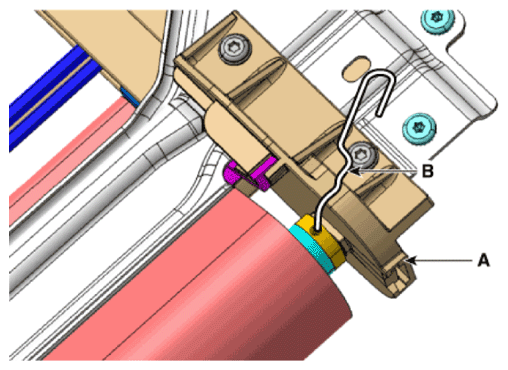

  3. Remove the fixed pin (B) located inside the right side roller blade side bracket (A).
    G14526330Courtesy of HYUNDAI MOTOR AMERICA

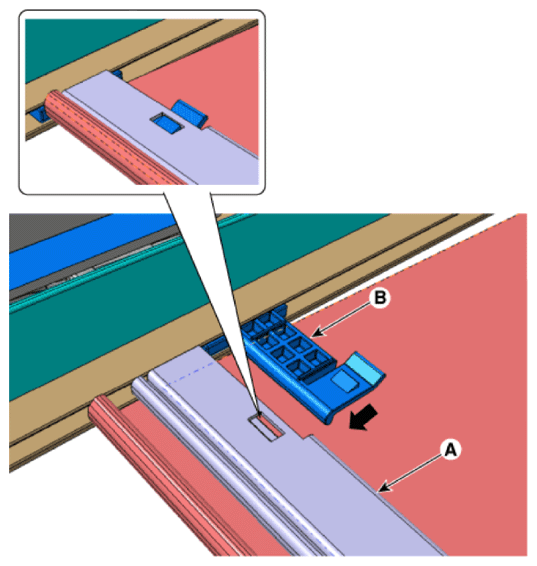

  4. Put the roller blind bar (A) into the roller blind shoe (B).
    G14526331Courtesy of HYUNDAI MOTOR AMERICA
