Repair Procedures: Replacement
- Remove the roof trim.
- Remove the roller blind.
(Panorama sunroof - refer "Roller Blind")

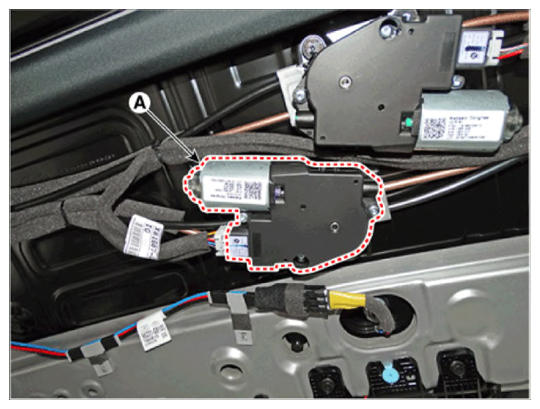

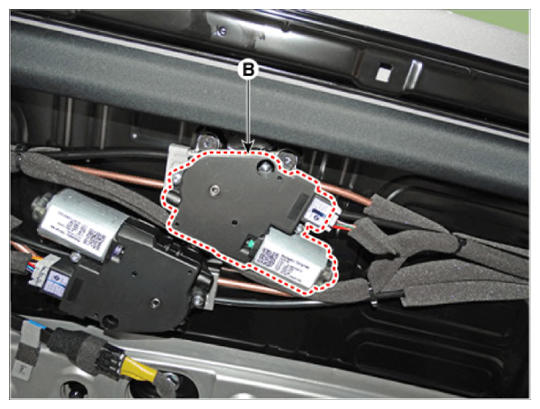

- Loosen the mounting screws and remove the Movable glass motor (A) Roller blind motor (B).
- Loosen the mounting screws and separate the mechanism rail assembly.

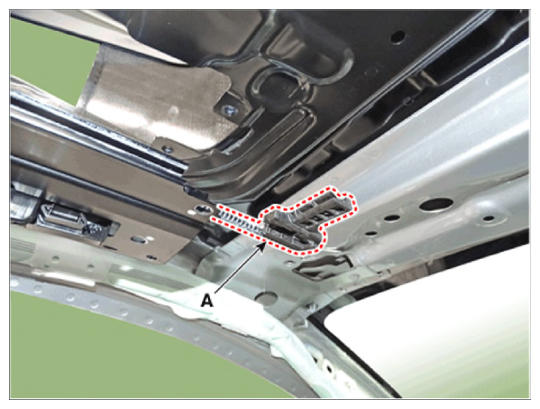

- Remove the roller blind cable assembly (A) from mechanism rail assembly.
- To install, reverse the removal procedure.
Information
- Avoid excessive force as the shoe may not be inserted well.
