Glass step alignment

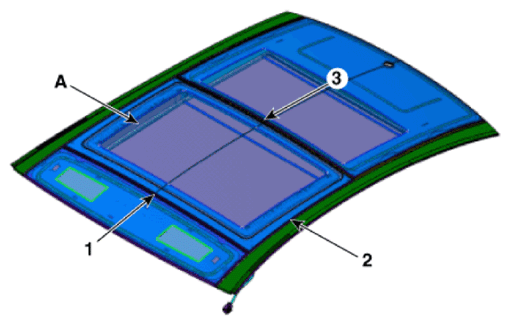

  1. Perform considerable step alignment after replacing movable glass.
    G14526300Courtesy of HYUNDAI MOTOR AMERICA
    (1)
    G14526301Courtesy of HYUNDAI MOTOR AMERICA
    (2)
    G14526302Courtesy of HYUNDAI MOTOR AMERICA
    (3)
    G14526303Courtesy of HYUNDAI MOTOR AMERICA

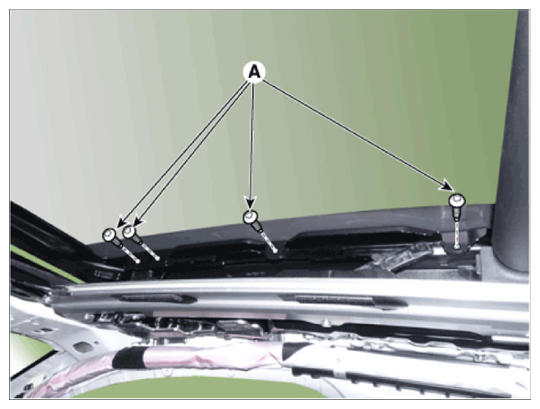

  2. Perform height adjustment releasing height adjust screw (A) a bit.
    CAUTION:
    • Be careful not to damage screws.
    G14526304Courtesy of HYUNDAI MOTOR AMERICA
