Repair Procedures: Replacement

  1. Open movable glass completely pressing panorama sunroof switch.

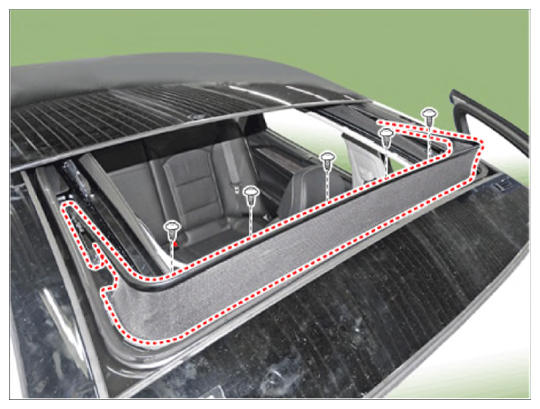

  2. Loosen the mounting screws located at the side of the panorama sunroof deflector.
    G14526318Courtesy of HYUNDAI MOTOR AMERICA

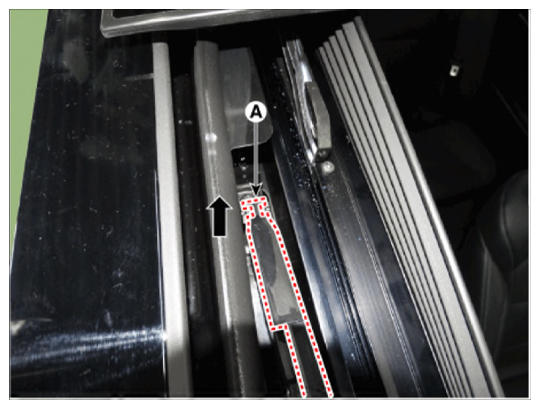

  3. Remove the panoramic sunroof deflector fixing bracket (A) by pushing it upwards like an arrow.
    G14526319Courtesy of HYUNDAI MOTOR AMERICA
  4. To install, reverse the removal procedure.
