Repair Procedures: Replacement
- Open movable glass completely pressing panorama sunroof switch.

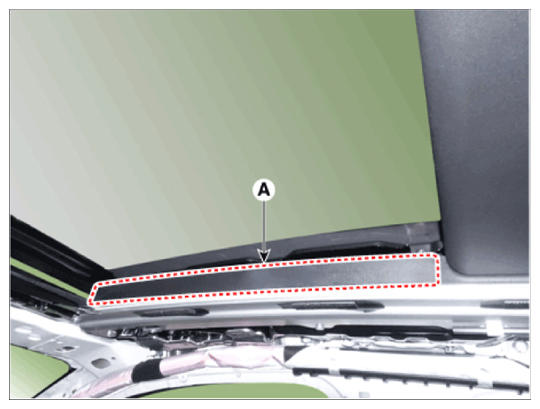

- Remove the slide folding cover (A).
- Close movable glass completely pressing panorama sunroof switch.

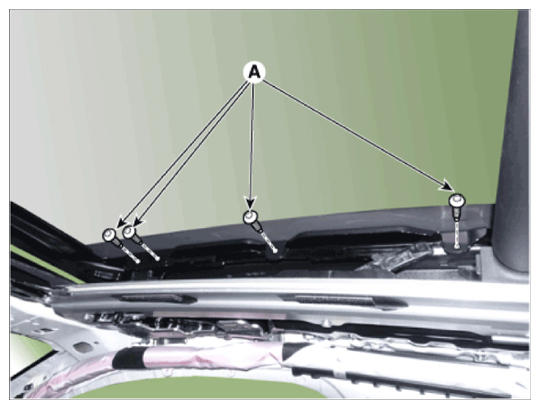

- Loosen screws mounted on the glass using star wrench (T25) then remove movable glass (A).CAUTION:
- Be careful not to damage screws.
- Install in the reverse order of removal.CAUTION:
- Carry out considerable step adjustment after exchanging movable glass.

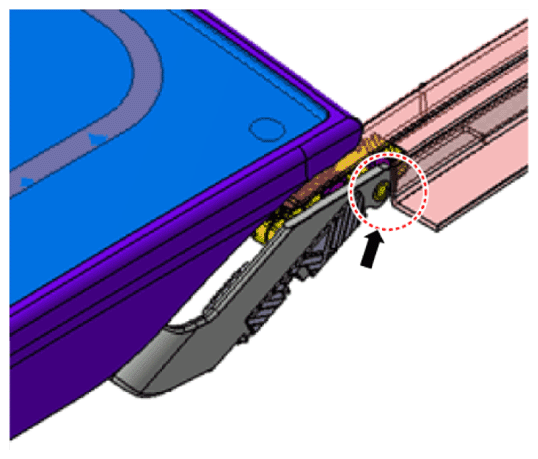

- When movable glass is installed tilt lever should be inserted first and be careful that tilt lever shoe should not be damaged by rear rail interference.
