Repair Procedures: Replacement
- Remove the roof trim.
- Remove the movable glass.
(Panorama sunroof - refer "Movable Glass")
- Remove the roller blind.
(Panorama sunroof - refer "Roller Blind")

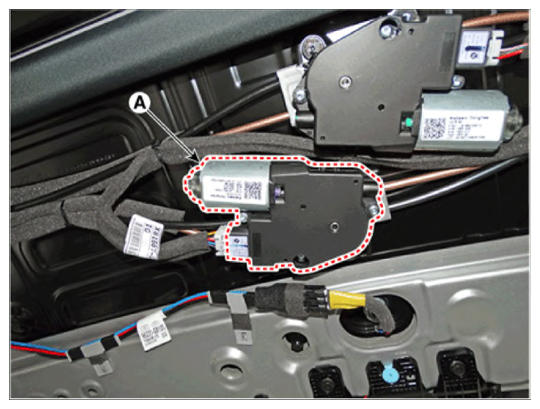

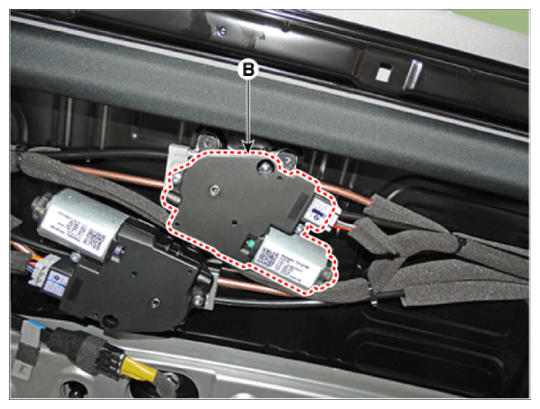

- Loosen the mounting screws and remove the Movable glass motor (A) Roller blind motor (B).

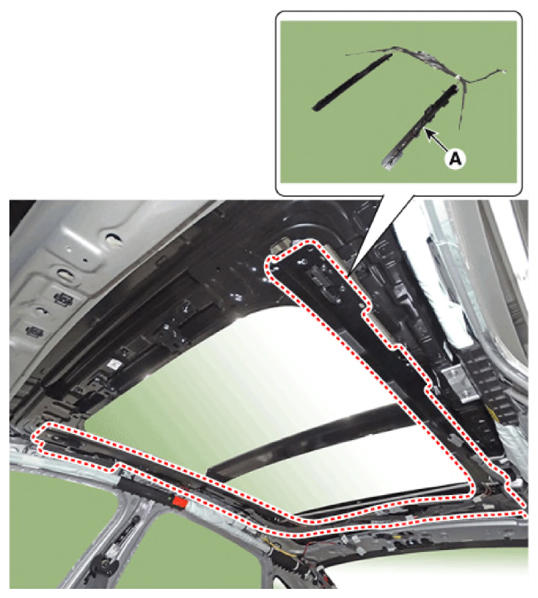

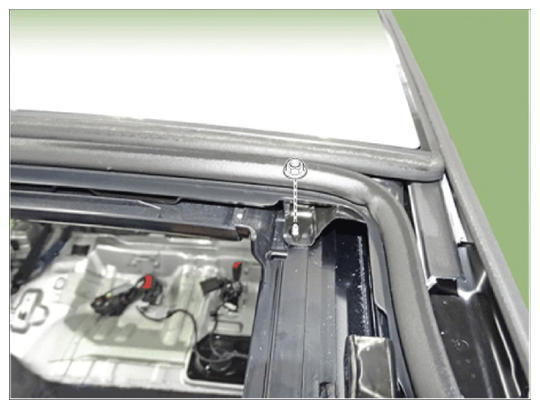

- Loosen the mounting screws, nuts and remove the mechanism rail assembly (A).
- To install, reverse the removal procedure.
