Repair Procedures: Removal

Information

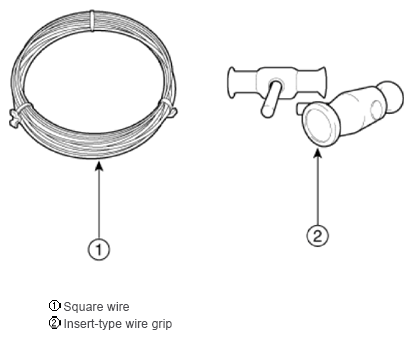

• In order to remove the front glass, use the tools shown in the illustration below

  [Tooling Diagram]

  Courtesy of HYUNDAI MOTOR AMERICA

• Insert and affix square wire (1) into the insert hole of the wire grip (2).

  [Tooling Assembly Diagram]

  Courtesy of HYUNDAI MOTOR AMERICA

1. Press panorama sunroof switch to fully open the movable glass.
2. Remove the roof side molding.

   (Refer to ROOF SIDE MOLDING

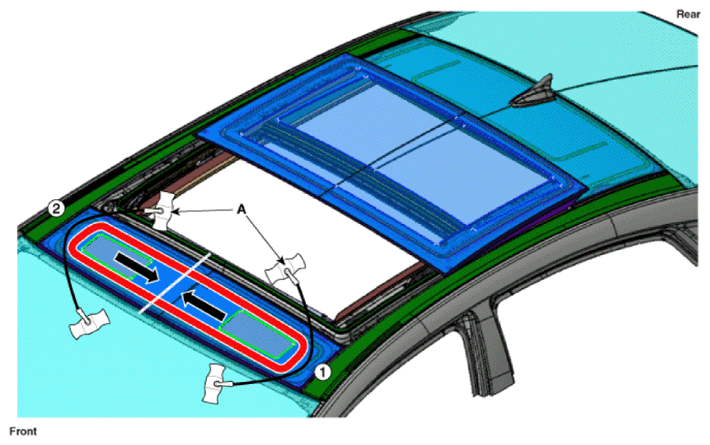

3. Pull the square wire (A) to the left and right, then apply a force in the direction of the arrow to cut off the residual sealant.

   Information

   • Longer wires require more power, so divide Section (1) and (2) in half to cut off residual sealant.
   CAUTION:

   • Make sure that you put on gloves to protect your hands from potential injury.
   • Be careful about potentially burning your hands due to the heat generated from the wire in use.
   • Be careful when working with wiring because it may be cut.
   NOTE:

   • Be careful not to damage the body.

   Courtesy of HYUNDAI MOTOR AMERICA

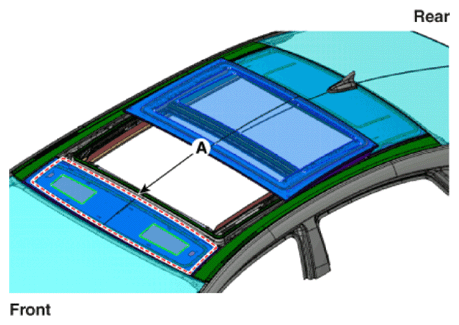

4. Remove the front glass (A) carefully without damaging it.
