Repair Procedures: Installation

Information

• In order to mount the front glass, use the tools shown in the illustration below

  [Tooling Diagram]

  Courtesy of HYUNDAI MOTOR AMERICA

1. Install the roof side molding.
2. Press panorama sunroof switch to fully close the movable glass.

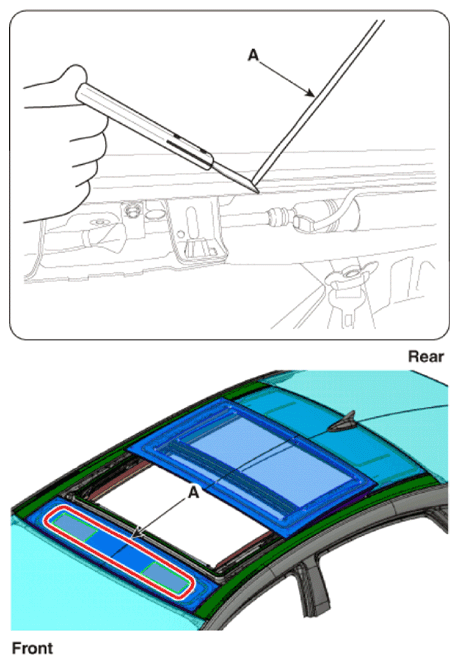

3. Use a blade to cut off residual sealant (A) around body panel.

   Information

   • When cutting off the residual sealant around the body panel, make sure to leave about 2 mm of sealant from the adhesive surface.
   NOTE:

   • Make sure that the body paint surface is not damaged at all.
   • If it is damaged, apply paint or rust inhibitor for maintenance.

   Courtesy of HYUNDAI MOTOR AMERICA

4. Use alcohol or an air gun to clean up the edges of the body panel and front glass.

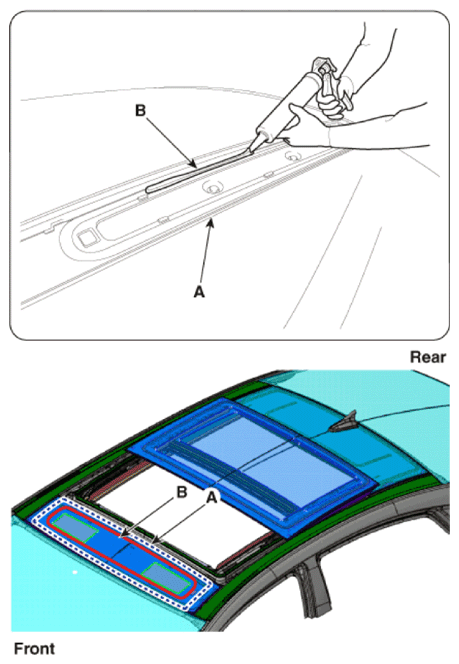

5. Use a sealant gun to apply sealant (B) around body panel (A).
   NOTE:

   • When using a sealant gun to apply the sealant, make sure that the sealant is not cracked to prevent water leaks.

   Courtesy of HYUNDAI MOTOR AMERICA

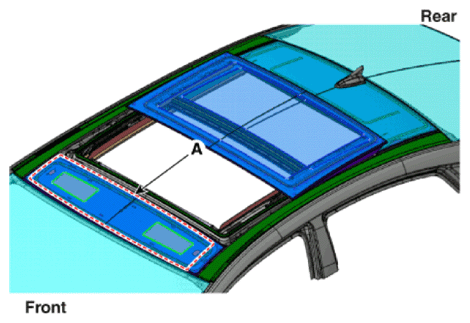

6. Install the front glass (A) loosely on the body panel.

   Courtesy of HYUNDAI MOTOR AMERICA

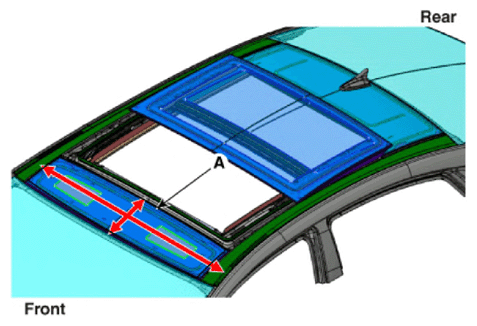

7. Check step and gap before front glass (A) is fully mounted.
8. Apply tape to around the front glass to prevent the glass from coming off.
   NOTE:

   • If sealant is excessively applied, it may ooze out of the body. Use alcohol or a cleaning agent to wipe off the residual sealant.

   Courtesy of HYUNDAI MOTOR AMERICA

   Information

   • Mount front glass and set the car on a flat surface at least for 4 hours.
   • If you have to drive the car, be sure to SLOWLY drive the car for at least 8 hours after mounting.
   • Alert the driver to avoid driving the car aggressively for 2-3 days, or avoid driving it on irregular road surfaces.
