Repair Procedures: Inspection

  1. Disconnect the negative (-) battery terminal.

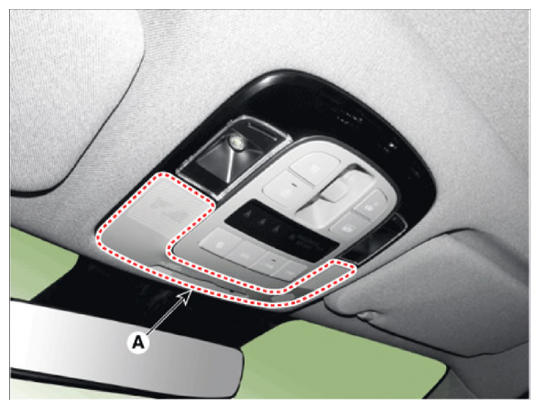

  2. Remove the over head console cover (A).
    G14527039Courtesy of HYUNDAI MOTOR AMERICA

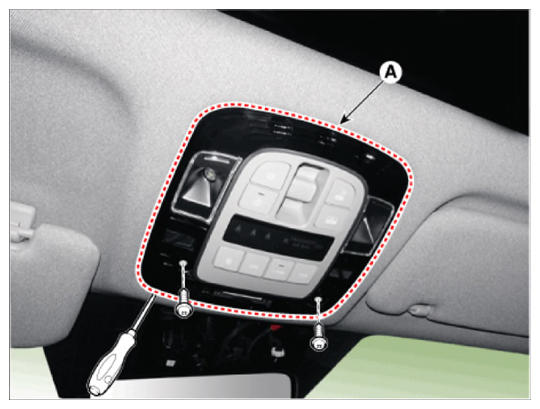

  3. Remove the overhead console (A) after loosening mounting screws.
    G14527040Courtesy of HYUNDAI MOTOR AMERICA

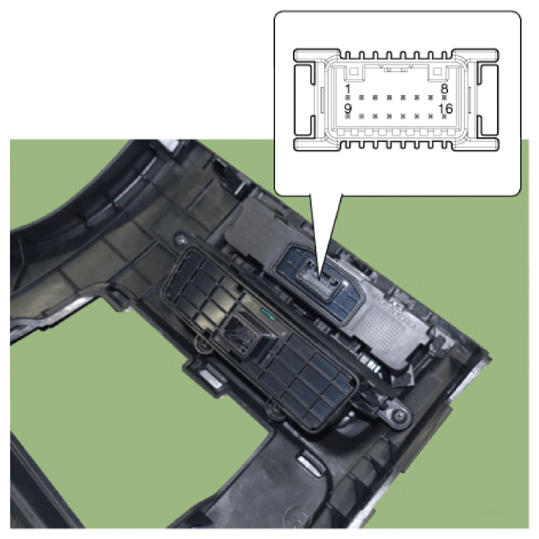

  4. Check for continuity between the terminals in each switch position as shown below.
    G14527041Courtesy of HYUNDAI MOTOR AMERICA
    G14527042Courtesy of HYUNDAI MOTOR AMERICA
