Repair Procedures: Replacement: Notes

  1. Disconnect the negative (-) battery terminal.
  2. Remove the roof trim assembly.

    (Refer to Body - "ROOF TRIM ASSEMBLY ")

  3. Remove the sunroof motor mounting screws (3EA). And then remove the sunroof motor (A) after disconnecting the connector.

    [Sunroof Motor]

    G14527043Courtesy of HYUNDAI MOTOR AMERICA

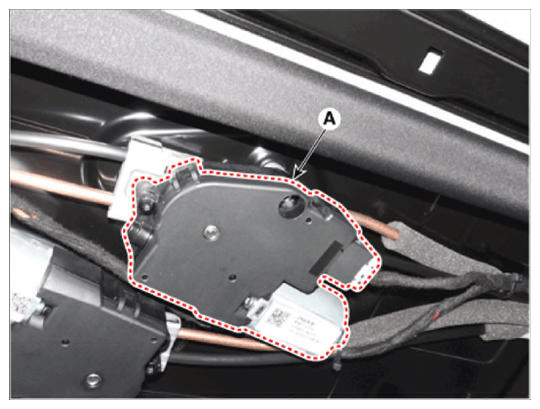

  4. Remove the blind motor mounting screws (3EA). And then remove the blind motor (A) after disconnecting the connector.

    [Blind Motor]

    G14527044Courtesy of HYUNDAI MOTOR AMERICA
