Repair Procedures: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

Separate the plug hole (A), loosen the mounting nuts and remove the wiper arm (B).

Courtesy of HYUNDAI MOTOR AMERICA

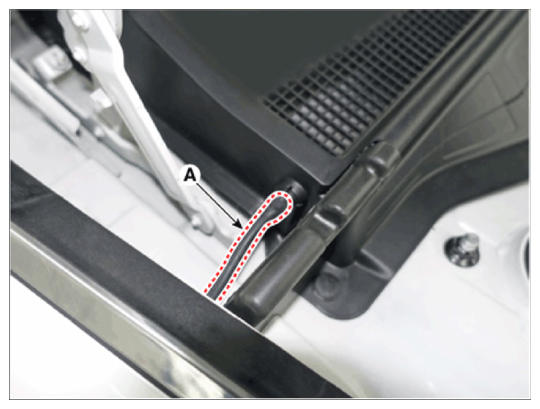

Separate the washer nozzle (A).

Courtesy of HYUNDAI MOTOR AMERICA

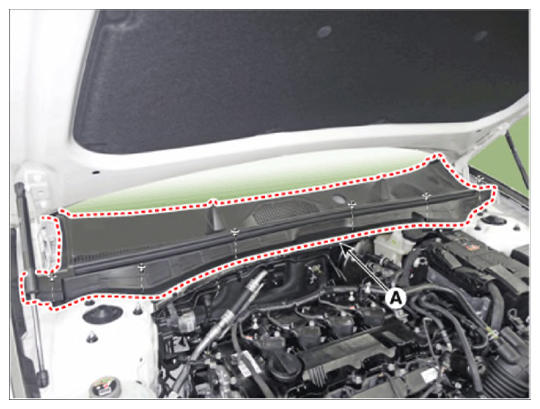

Loosen the mounting clips and remove the cowl top cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
