Repair Procedures: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

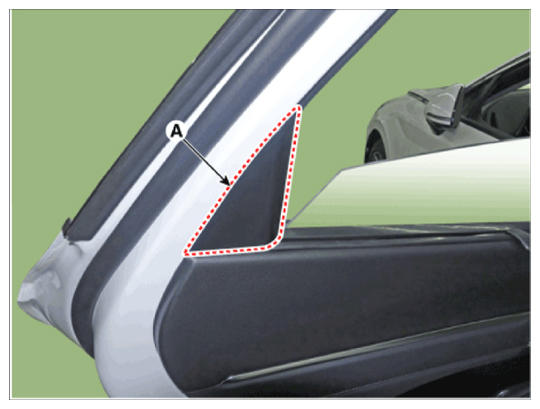

Using a remover and remove the rear door delta inner cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

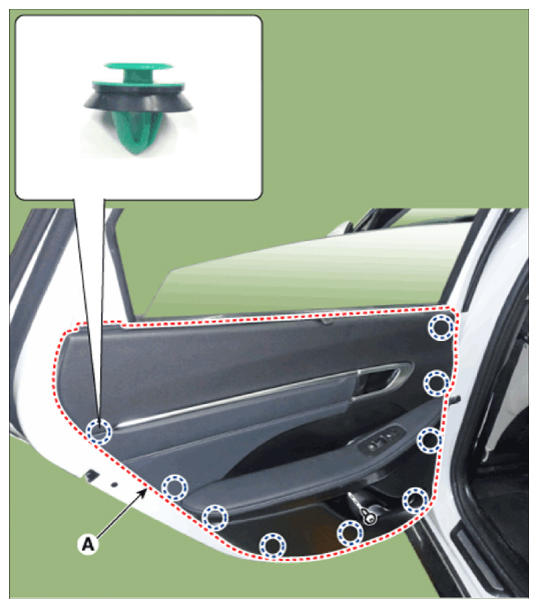

Loosen the mounting screw, using a flat-tip screwdriver and remove the rear door trim (A).

Courtesy of HYUNDAI MOTOR AMERICA
Press the lock pin and separate the rear door inside handle case (A).

Courtesy of HYUNDAI MOTOR AMERICA

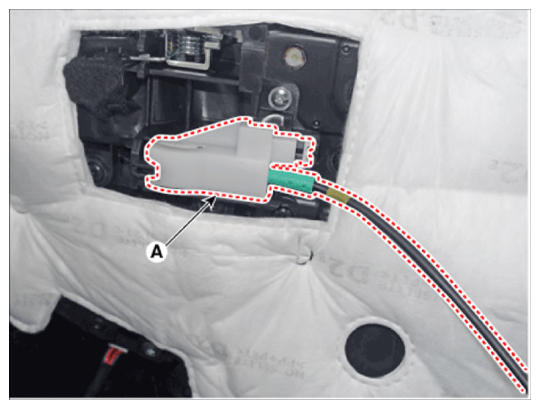

Press the lock pin and separate the rear door switch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

To install, reverse the removal procedure.

Information

Be sure to replace the clip (fastener) when re-installing after detaching the door trim.

* In case of non-exchange, watertightness/exit problems may occur

Water tightness prevention
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA

Make sure the connector is connected properly.
Make sure the door locks/unlocks and opens/closes properly.
Replace any damaged clips (or pin-type retainers).
Make sure the glass is operated properly.
