Repair Procedures: Replacement

CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.

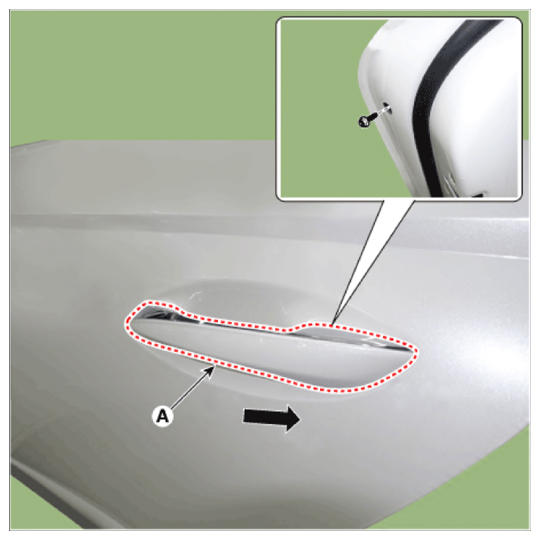

  1. Remove the plug hole, loosen the mounting bolt and remove the rear door outside handle (A).

    Tightening torque:

    6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

    G14526283Courtesy of HYUNDAI MOTOR AMERICA
  2. To install, reverse removal procedure.

    Information

    • Make sure the door locks/unlocks and opens/closes properly.

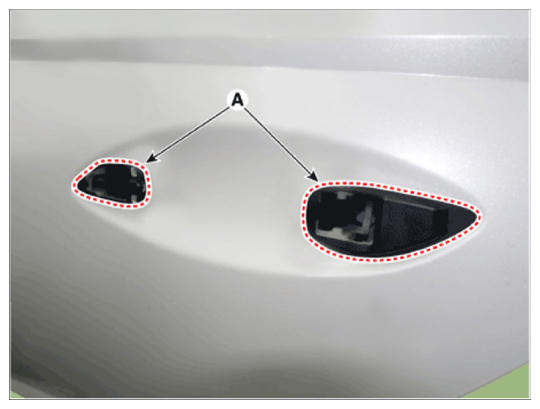

    • Be sure to install the outside handle pad (A) between the outside handle and the door panel.
      G14526284Courtesy of HYUNDAI MOTOR AMERICA
