Repair Procedures: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
- Remove the rear door window glass.
(Refer to Rear Door - "REAR DOOR WINDOW GLASS ")
- Remove the rear door outside handle.
(Refer to Rear Door - "REAR DOOR OUTSIDE HANDLE ")

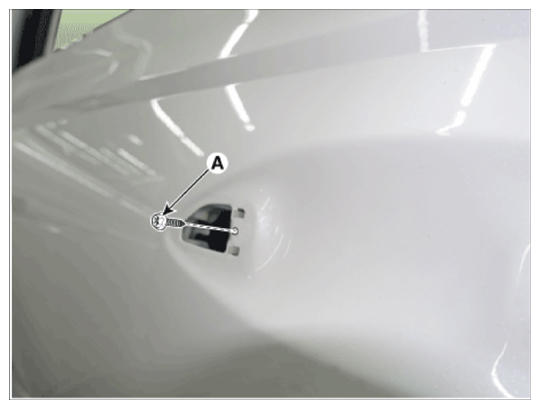

- Loosen the rear door outside handle base mounting bolt (A).
Tightening torque:
2.0 - 2.9 N.m (0.2 - 0.3 kgf.m, 1.4 - 2.2 lb-ft)

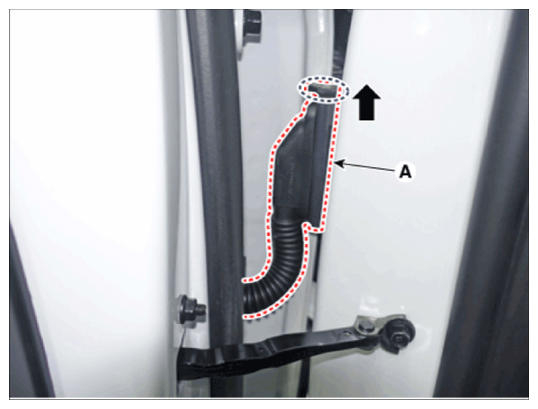

- Release the locking pin in the direction of the arrow and remove the rear door main wiring connector (A).

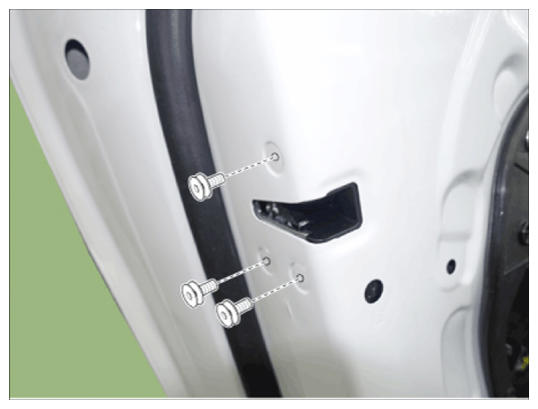

- Loosen the rear door latch mounting screws.
Tightening torque:
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

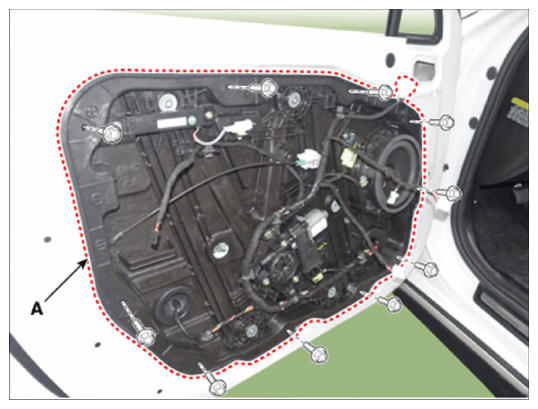

- Loosen the mounting bolts and remove the rear door module (A).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
- Disconnect the connectors and rear door module wiring harness (A).
- Remove the rear door latch assembly.
(Refer to Rear Door - "REAR DOOR LATCH ")
- Remove the rear speaker.
(Refer to Body Electrical System - "SPEAKERS ")
- Remove the rear power window motor.
(Refer to Body Electrical System - "POWER WINDOW MOTOR ")
- To install, reverse the removal procedure.
Information
- Make sure connectors are connected properly and each rod is connected securely.
- Make sure the door locks/unlocks and opens/closes properly.
