Repair Procedures: Replacement

CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
  1. Remove the rear door module.

    (Refer to Rear Door - "REAR DOOR MODULE ")

  2. Separate the rear door outside handle connector (A) and remove the wiring harness.
  3. Press the lock pin and remove the rear door latch (B).

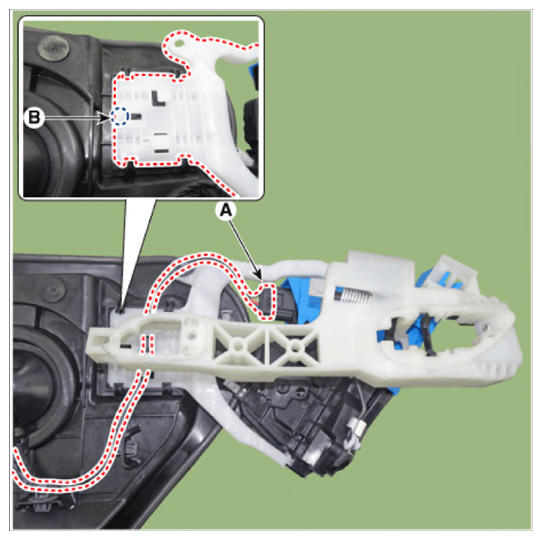

    G14526290Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the rear door inside handle case (A) and rubber packing (B).

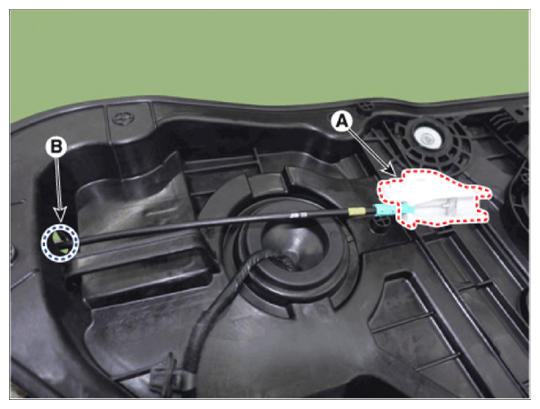

    G14526291Courtesy of HYUNDAI MOTOR AMERICA
  5. Open the cover to remove the rod (A) and remove the rear door outside handle base (C) by pressing the locking pin (B).

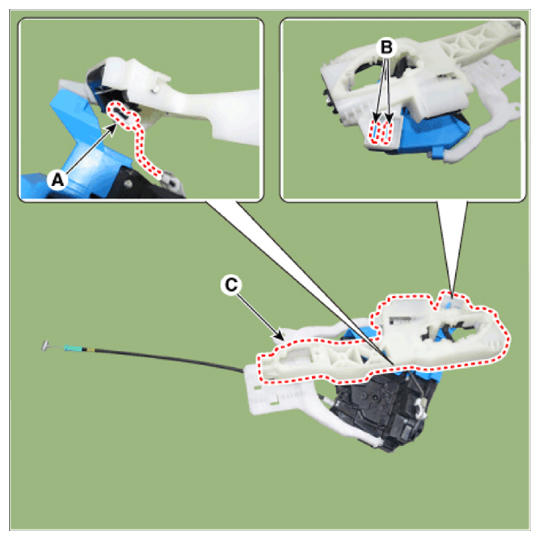

    G14526292Courtesy of HYUNDAI MOTOR AMERICA
  6. To install, reverse the removal procedure.

    Information

    • Make sure the connector is connected properly.
    • Make sure the door locks/unlocks and opens/closes properly.
    • Replace any damaged clips (or pin-type retainers).
