Repair Procedures: Replacement

  1. Pull down the rear door window glass to the lowest level by pressing the power window glass switch.

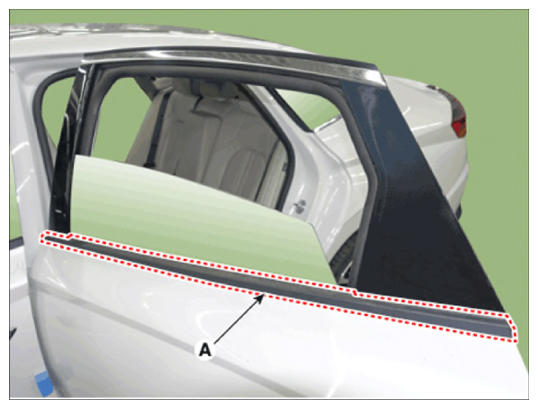

  2. Remove the rear door belt outside weatherstrip (A).
    G14526285Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse the removal procedure.

    Information

    • Replace any damaged clips.
