Repair Procedures: Replacement

  1. Remove the rear door trim.

    (Refer to Rear Door - "REAR DOOR TRIM ")

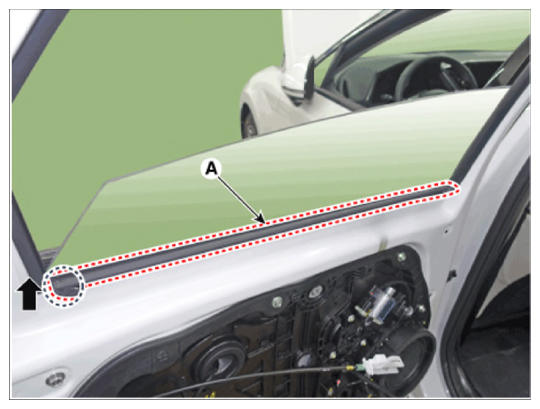

  2. Remove the rear door belt inside weatherstrip (A).
    G14526286Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse the removal procedure.

    Information

    • When installing, install it by first contacting the inside part (basis point of assembly) of arrow to door frame.
    • Replace any damaged clips.
