Repair Procedures: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to bend or scratch the trim and panels.
Put on gloves to prevent hand injuries.

Remove the trunk lid weatherstrip.
(Refer to Trunk Lid - "TRUNK LID WEATHERSTRIP ")
Remove the luggage covering boad.

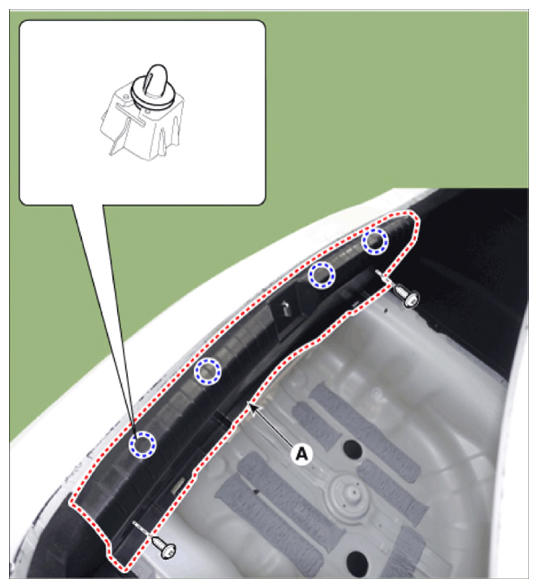

Loosen the mounting clips and remove the rear transverse trim (A).

Courtesy of HYUNDAI MOTOR AMERICA

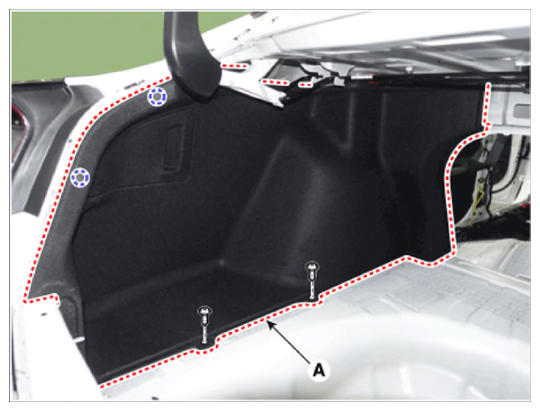

Loosen the mounting screws, clips and separate the luggage side trim [RH] (A).

Courtesy of HYUNDAI MOTOR AMERICA

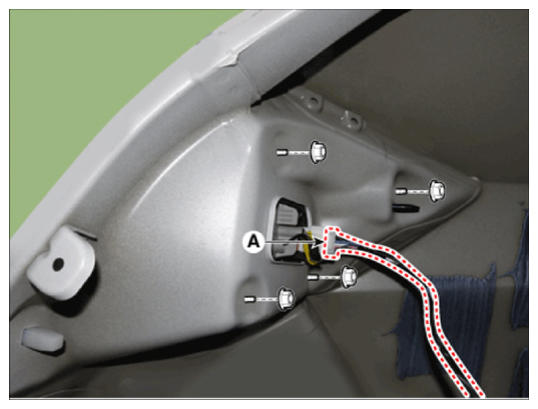

Loosen the rear combination lamp mounting nuts and separate the rear combination lamp connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

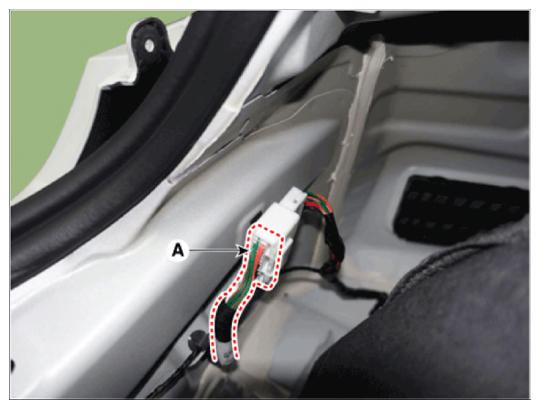

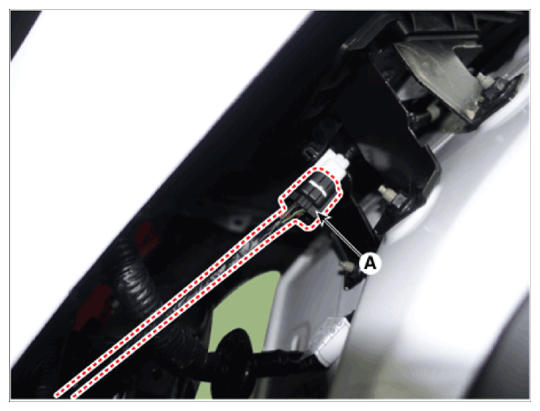

Separate the rear bumper main connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

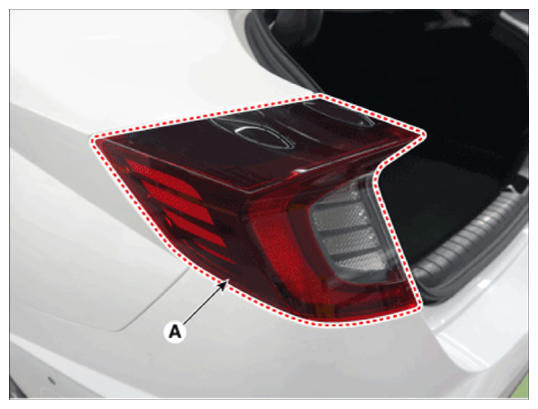

Remove the rear combination lamp (A).

Courtesy of HYUNDAI MOTOR AMERICA

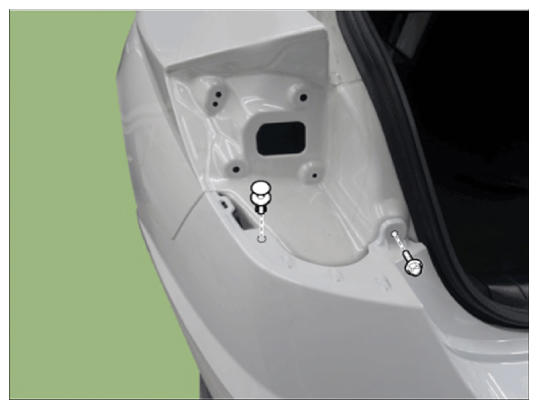

Loosen the mounting screw and clip.

Courtesy of HYUNDAI MOTOR AMERICA

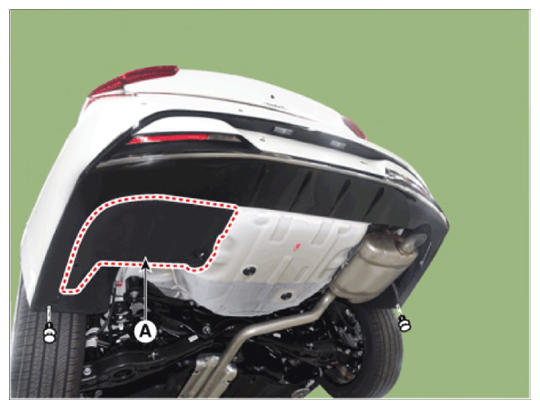

Loosen the mounting clips, nuts and remove the rear bumper side under cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

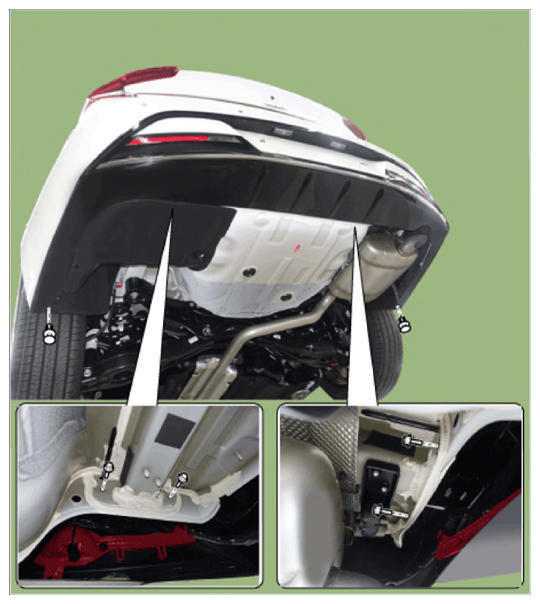

Loosen the rear bumper mounting bolts.

Courtesy of HYUNDAI MOTOR AMERICA

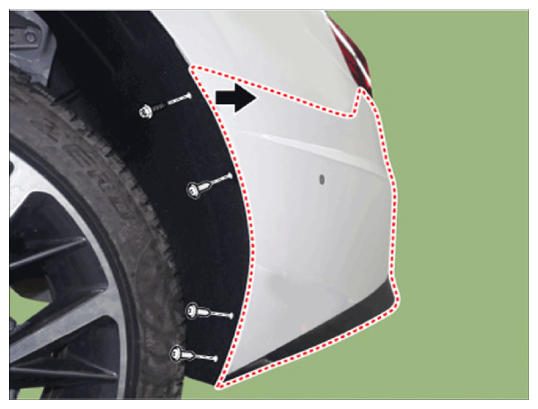

Loosen the pin-type retainers and screws on the side of rear bumper, detach the side part of rear bumper.
NOTE:
- When you pull out the rear bumper, the side part of the rear bumper could be damaged by the projection.
Courtesy of HYUNDAI MOTOR AMERICA
Separate the rear bumper connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

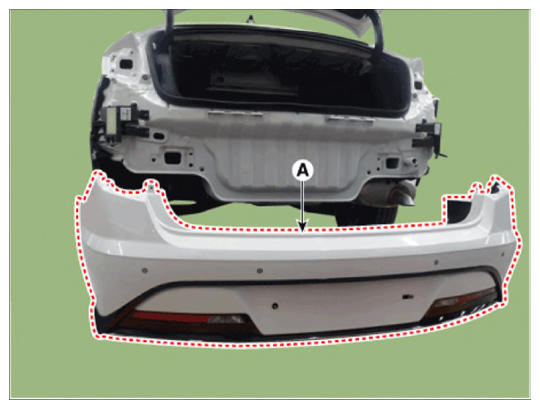

Remove the rear bumper cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector is connected in properly.
- Replace any damaged clips (or pin-type retainers).
