Repair Procedures: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

Remove the Luggage Side Trim [LH].
(Refer to Interior Trim - "LUGGAGE SIDE TRIM ")

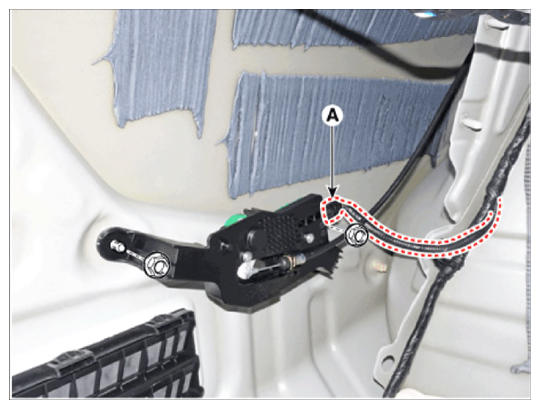

Separate the connector (A), loosen the mounting nuts and remove the fuel filler door actuator.

Courtesy of HYUNDAI MOTOR AMERICA

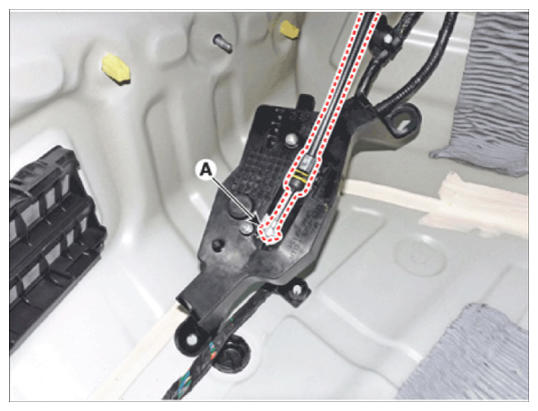

Separate the fuel filler door cable (A) from the actuator.
CAUTION:
- Do not separate it with excessive force. (Replace with new cable if necessary)
Courtesy of HYUNDAI MOTOR AMERICA

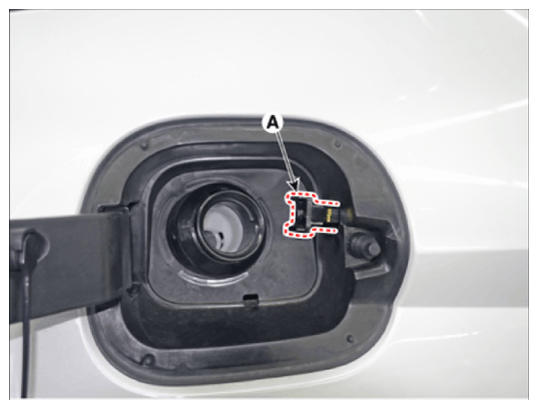

Using a remover and remove the fuel filler door mounting pin (A).

Courtesy of HYUNDAI MOTOR AMERICA

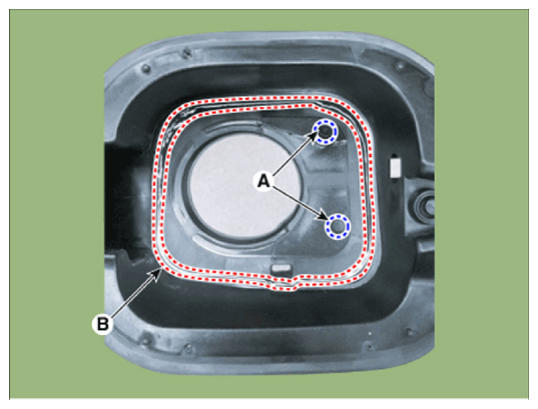

Loosen the fuel door mounting bolt (A) and remove the rubber end (B) with a knife.

Courtesy of HYUNDAI MOTOR AMERICA

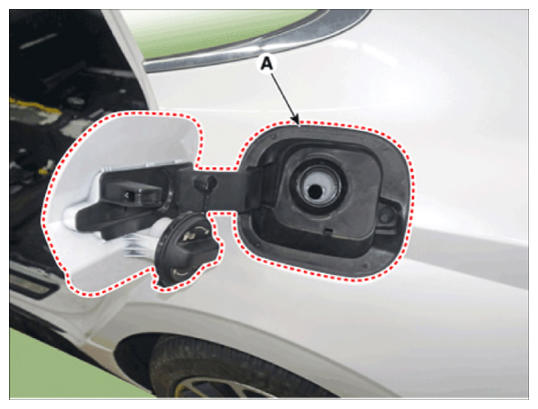

Remove the fuel filler door (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the fuel filler door locks/unlocks and opens/closes properly.
