Repair Procedures: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to bend or scratch the trim and panels.
Put on gloves to prevent hand injuries.

Remove the front bumper cover.
(Refer to Front Bumper - "FRONT BUMPER COVER ")

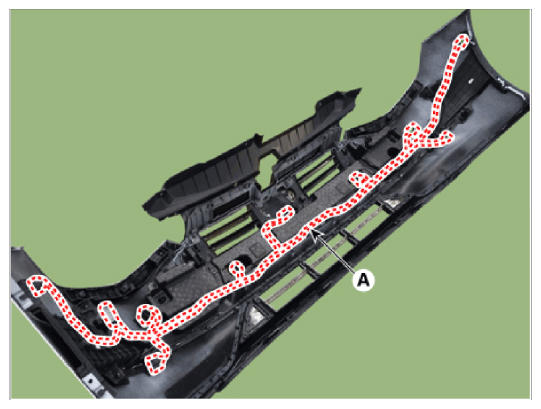

Separate the front bumper wiring (A).

Courtesy of HYUNDAI MOTOR AMERICA

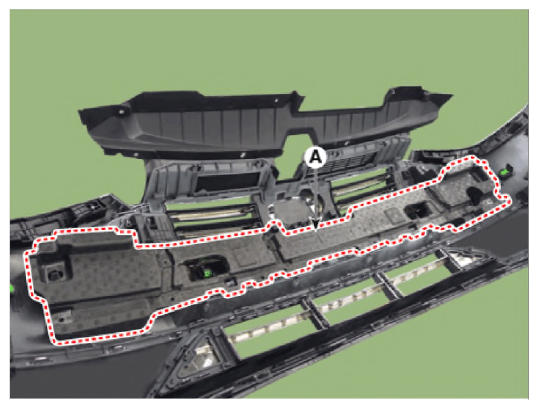

Remove the front bumper energy absorber (A).

Courtesy of HYUNDAI MOTOR AMERICA

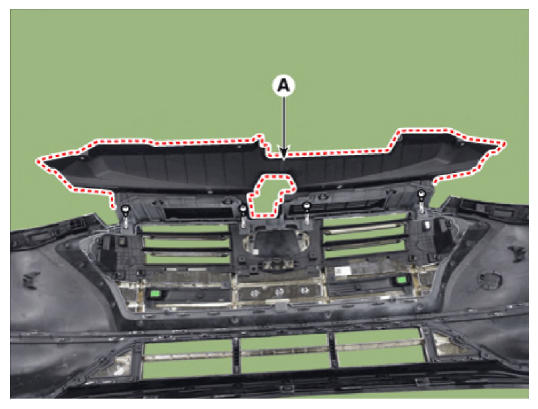

Loosen the mounting screws and remove the front bumper upper cover (A).
CAUTION:
- Be careful not to break it when removing it.
Courtesy of HYUNDAI MOTOR AMERICA

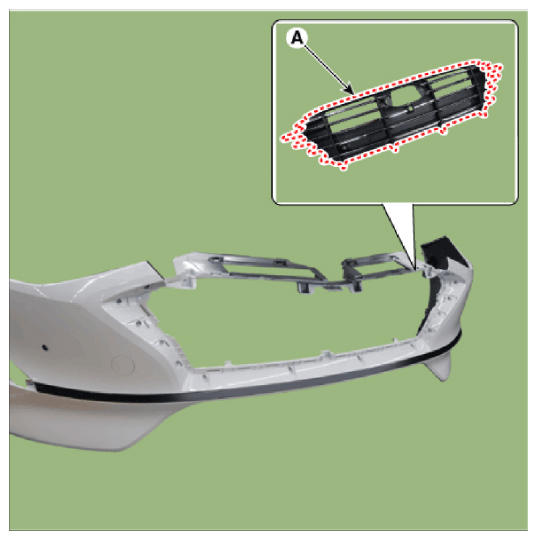

Loosen the mounting screws and remove the radiator grille (A).
CAUTION:
- Be careful not to break it when removing it.
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
