Repair Procedures: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to bend or scratch the trim and panels.
Put on gloves to prevent hand injuries.

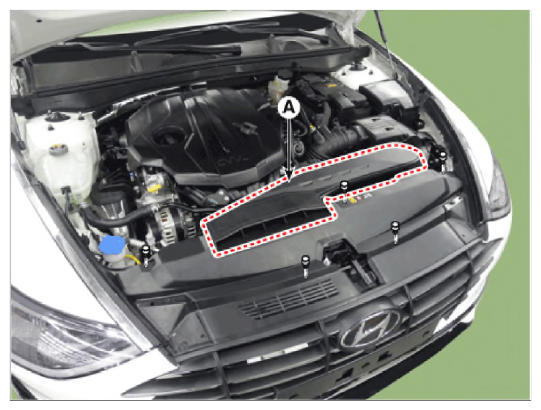

Loosen the mounting clips and remove the air duct (A).

Courtesy of HYUNDAI MOTOR AMERICA

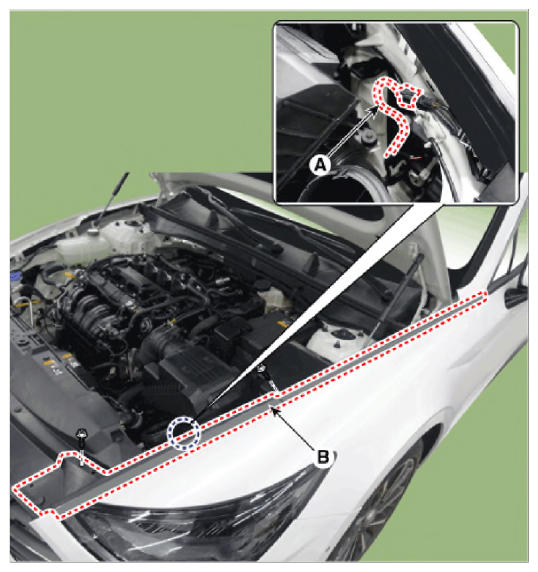

Separate the DRL (Day right lamp) connector (A), loosen the mounting bolt and remove the fender garnish (B).

Courtesy of HYUNDAI MOTOR AMERICA

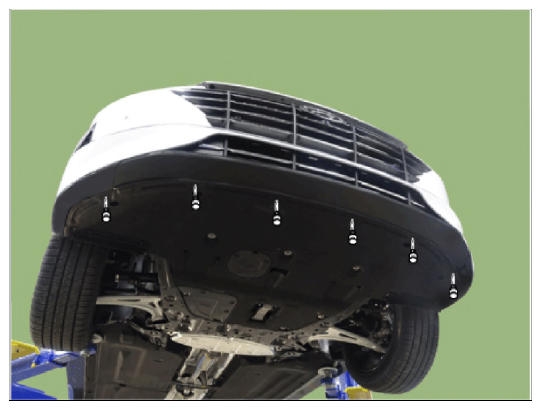

Loosen the front bumper lower clips.

Courtesy of HYUNDAI MOTOR AMERICA

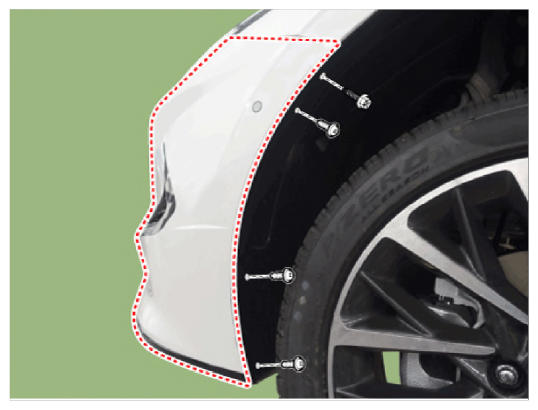

Loosen the pin-type retainers and screws on the side of front bumper, detach the side part of front bumper.
NOTE:
- When you pull out the front bumper, the side part of the front bumper could be damaged by the projection.
Courtesy of HYUNDAI MOTOR AMERICA

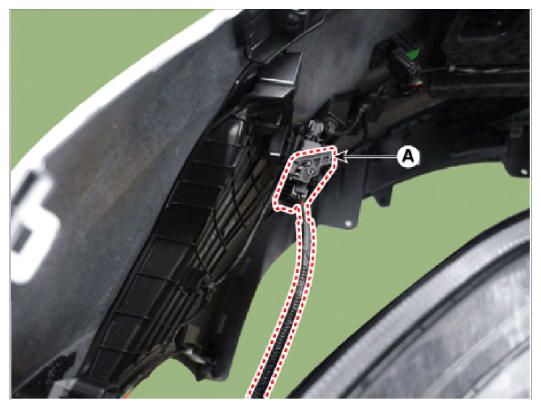

Press the lock pin and separate the front bumper main connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

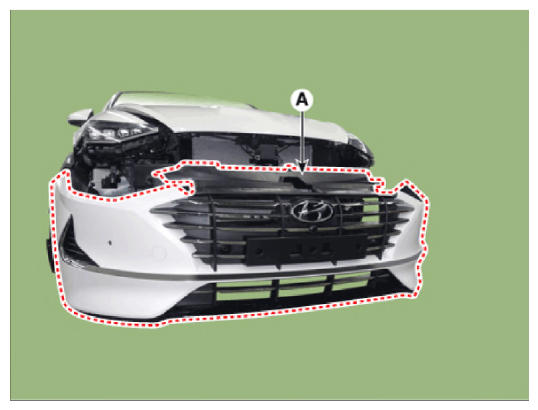

Remove the front bumper cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector is connected in properly.
- Replace any damaged clips (or pin-type retainers).
