Home >> Hyundai >> 2020 >> Sonata SEL >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Fuel Filler Door - Inspection (Except HEV) >> Fuel Filler Door Release Actuator >> Repair Procedures >> Inspection

Repair Procedures: Inspection

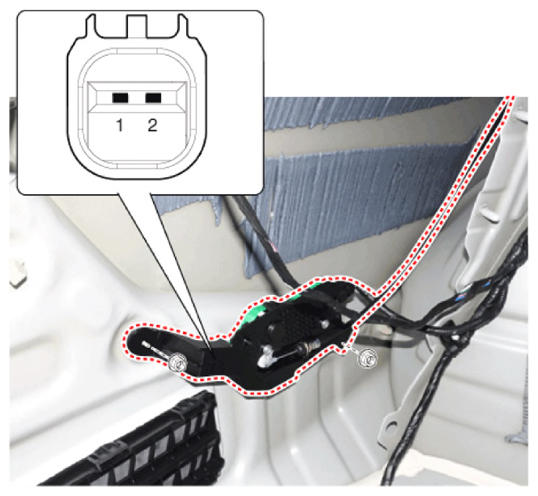

  1. Check for continuity between terminal No. 1 and No. 2. If there is no continuity, replace the fuel filler door release actuator.
    G14526819Courtesy of HYUNDAI MOTOR AMERICA
