Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

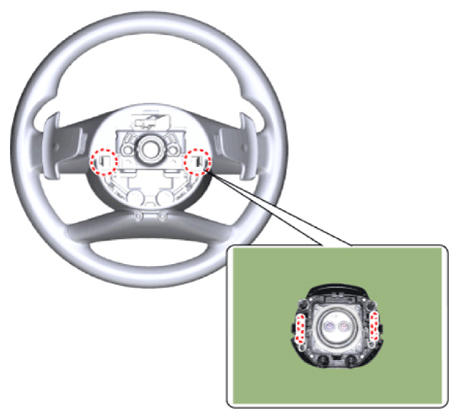

  2. Putting in a flat tool (05 mm) into the guide hole (A) and then release the DAB pin.
    G14526634Courtesy of HYUNDAI MOTOR AMERICA
  3. Release the wiring clip and then disconnect the horn connector (B).

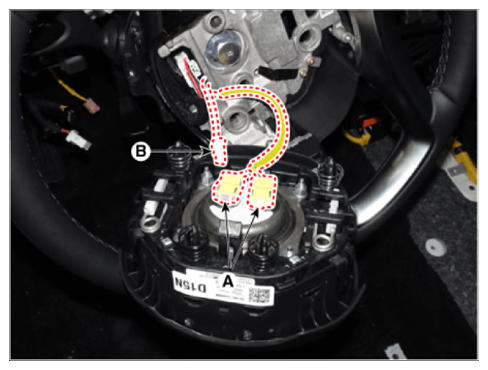

  4. Disconnect the DAB connector (A), then remove the driver airbag
    G14526635Courtesy of HYUNDAI MOTOR AMERICA

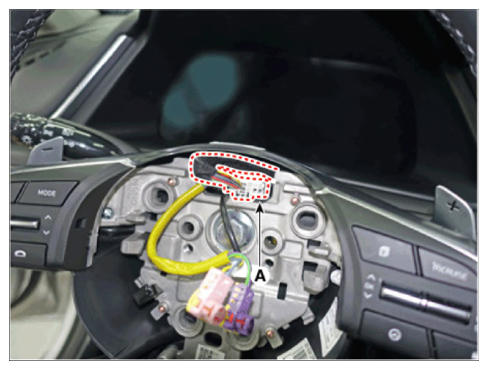

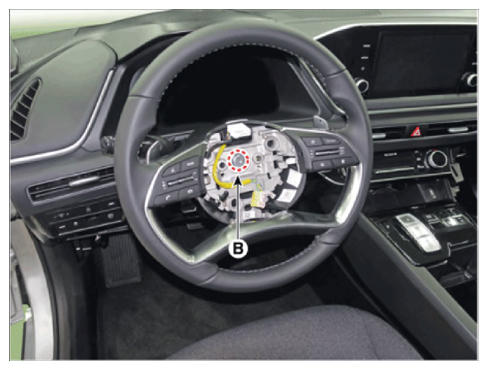

  5. After disconnecting the connector (A), remove the steering wheel by loosening the mounting bolt (B).
    G14526636Courtesy of HYUNDAI MOTOR AMERICA
    G14526637Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the steering column upper and lower shrouds.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

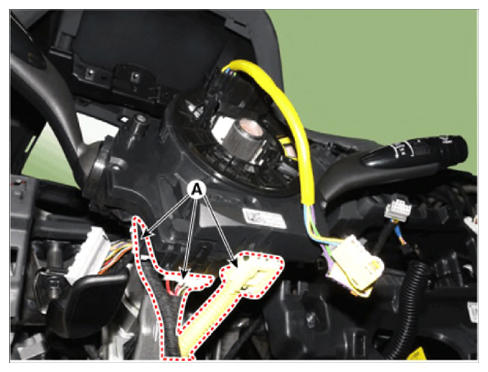

  7. Disconnect multifunction switch connectors (A).
    G14526638Courtesy of HYUNDAI MOTOR AMERICA

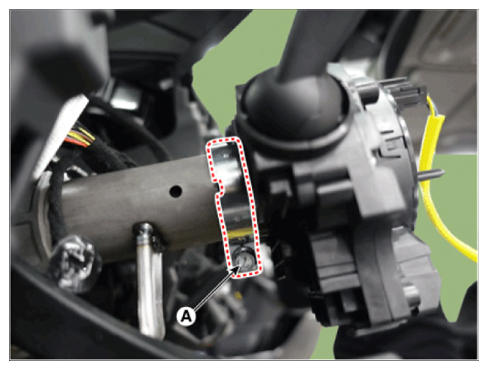

  8. Remove the multifunction switch after loosening the screw (A).
    G14526639Courtesy of HYUNDAI MOTOR AMERICA
