Multifunction Switch Inspection

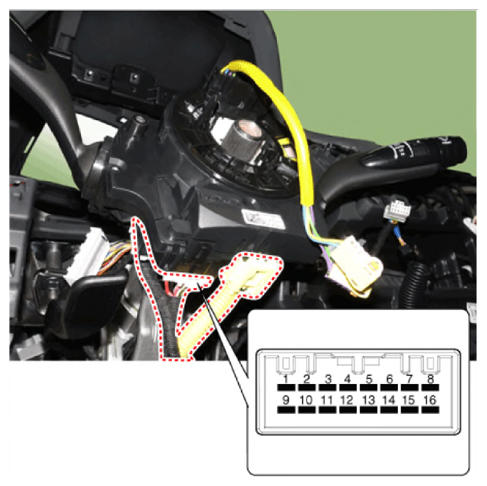

Check for continuity between the terminals in each switch position as shown in the illustration below.

Courtesy of HYUNDAI MOTOR AMERICA

Switch	Switch position	Switch terminal	Resistance (Ω, ±3.5%)
Front wiper switch	MIST	6-5	330
	OFF		∞
	INT (AUTO)		800
	LOW		1800
	HIGH		5700
Front wiper intermittent volume	Volume 1	3-5	330
	Volume 2		690
	Volume 3		1310
	Volume 4		2610
	Volume 5		7310
Fog lamp switch	OFF	12-5	∞
	Front fog lamp		910
	Rear fog lamp		2910
Turn signal switch	OFF	14-5	∞
	Left		910
	Right		2910
Dimmer & Passing switch	OFF	13-5	∞
	Passing		910
	Dimmer		2910
Light switch	OFF	10-5	680
	AUTO/DRL		∞
	Tail lamp		1680
	Low beam		5580
