Components & Components Location: Component

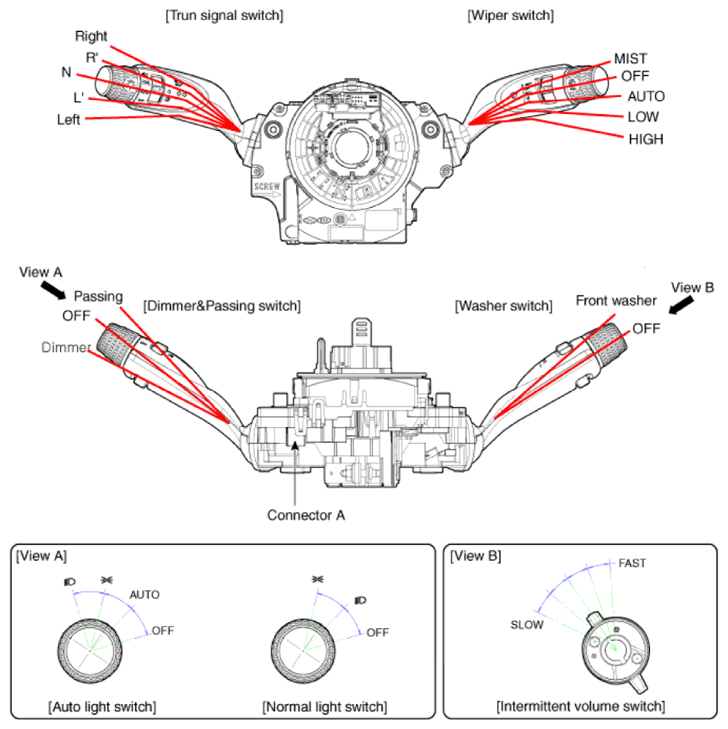

Fig 1: Multifunction Switch Components Location With Torque Specification

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Pin	Standard	R-MDPS
1	-	-
2	Head lamp low back up signal	Head lamp low back up signal
3	Front wiper INT volume signal	-
4	Ground	-
5	Ground	Ground
6	Front wiper switch signal	-
7	Front wiper Low back up signal	Front wiper Low back up signal
8	IGN 2	IGN 2
9	Front washer motor switch power	Front washer motor switch power
10	Light switch signal	C-CAN (High)
11	-	C-CAN (Low)
12	Fog lamp switch signal	IGN 1
13	Head lamp passing/High beam switch signal	-
14	Turn signal switch	B-CAN (High)
15	-	B-CAN (Low)
16	-	Battery (+)
