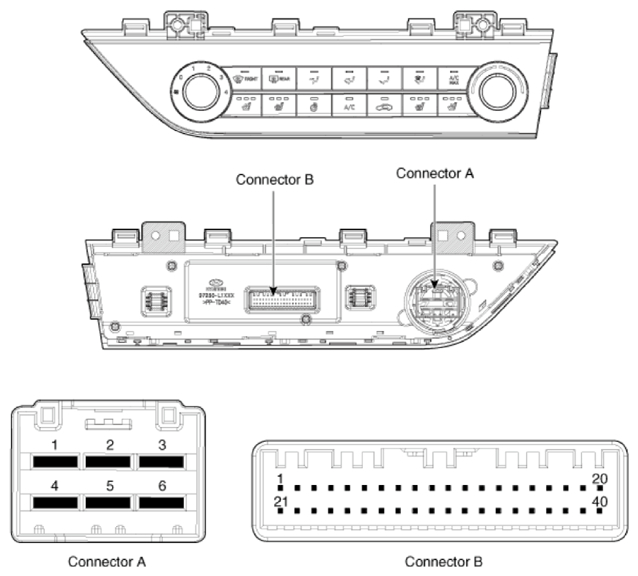

| 1 |
Low |
Battery (+) |
| 2 |
COMMON |
ISB power |
| 3 |
Ground |
Illumination (+) |
| 4 |
Middle Low |
Sensor power (+5V) |
| 5 |
High |
Mode actuator feedback |
| 6 |
|
Temperature actuator feedback |
| 7 |
Ambient actuator feedback |
| 8 |
Evaporator sensor (+) |
| 9 |
Ambient temperature sensor (+) |
| 10 |
Mode actuator (Vent) |
| 11 |
Mode actuator (Def) |
| 12 |
Temperature actuator (Cooling) |
| 13 |
Temperature actuator (Heater) |
| 14 |
Ambient actuator (Exterior) |
| 15 |
Ambient actuator (Interior) |
| 16 |
HTD |
| 17 |
- |
| 18 |
- |
| 19 |
Blower ON signal |
| 20 |
Illumination (-) |
| 21 |
IGN 2 |
| 22 |
IGN 1 |
| 23 |
- |
| 24 |
- |
| 25 |
- |
| 26 |
- |
| 27 |
Max blower ON signal |
| 28 |
- |
| 29 |
- |
| 30 |
- |
| 31 |
- |
| 32 |
- |
| 33 |
P CAN (High) |
| 34 |
P CAN (Low) |
| 35 |
- |
| 36 |
ECV (+) |
| 37 |
ECV (-) |
| 38 |
Sensor ground |
| 39 |
Ground |
| 40 |
Ground |
