Front Seat (Auto)

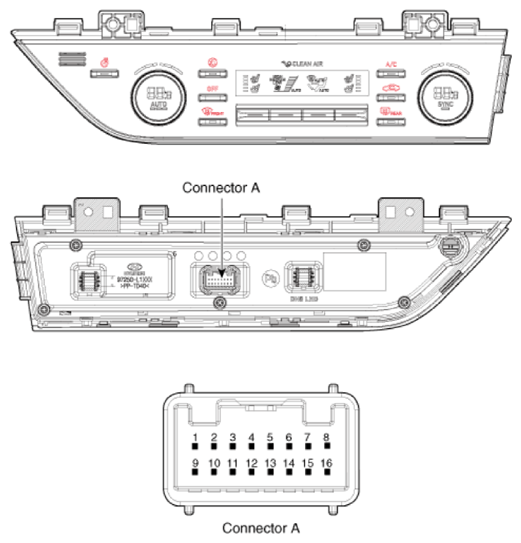

G14526798Courtesy of HYUNDAI MOTOR AMERICA
No Connector A
1 Battery (+)
2 Illumination (+)
3 -
4 LIN BUS
5 -
6 -
7 -
8 Illumination (-)
9 IGN2
10 ISG B
11 IGN1
12 HTD
13 -
14 -
15 -
16 Ground
