Rear Seat

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

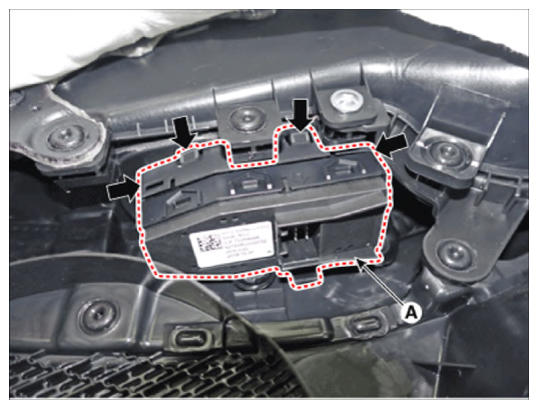

  3. Disengage the mounting clip and then remove the switch assembly (A).
    G14526800Courtesy of HYUNDAI MOTOR AMERICA
