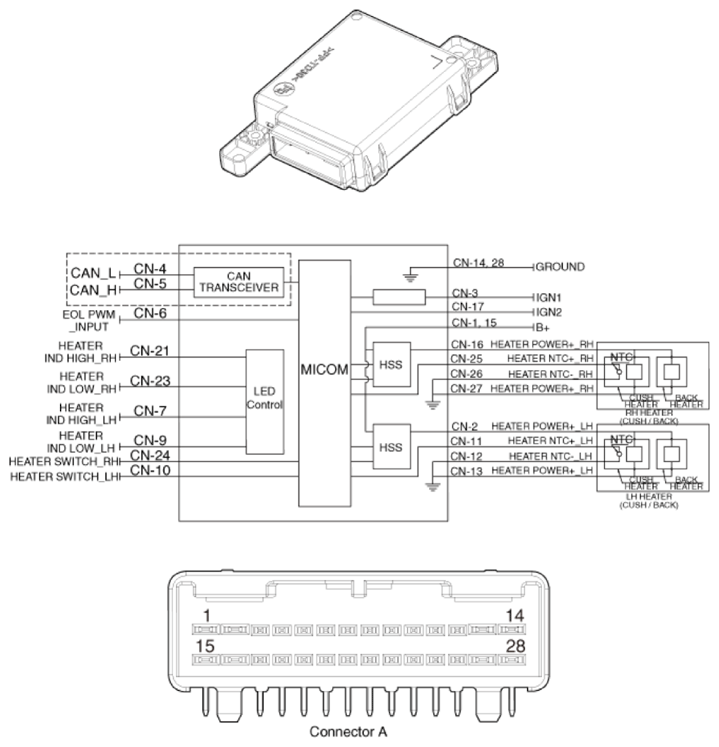

Rear Seat
| No | Connector A |
|---|---|
| 1 | Battery (+) |
| 2 | Heater power (+) (Left) |
| 3 | IGN 1 |
| 4 | - |
| 5 | - |
| 6 | EOL PWM |
| 7 | Heater indicator (High) (Left) |
| 8 | - |
| 9 | Heater indicator_ Low (Left) |
| 10 | Heater switch (Left) |
| 11 | Heater NTC (+) (Left) |
| 12 | Heater NTC (-) (Left) |
| 13 | Heater power (-) (Left) |
| 14 | Ground |
| 15 | Battery (+) |
| 16 | Heater power (+) (Right) |
| 17 | IGN 2 |
| 18 | - |
| 19 | - |
| 20 | - |
| 21 | Heater indicator_High (Right) |
| 22 | - |
| 23 | Heater indicator_Low (Right) |
| 24 | Heater switch (Right) |
| 25 | Heater NTC (+) (Right) |
| 26 | Heater NTC (-) (Right) |
| 27 | Heater power (-) (Right) |
| 28 | Ground |
