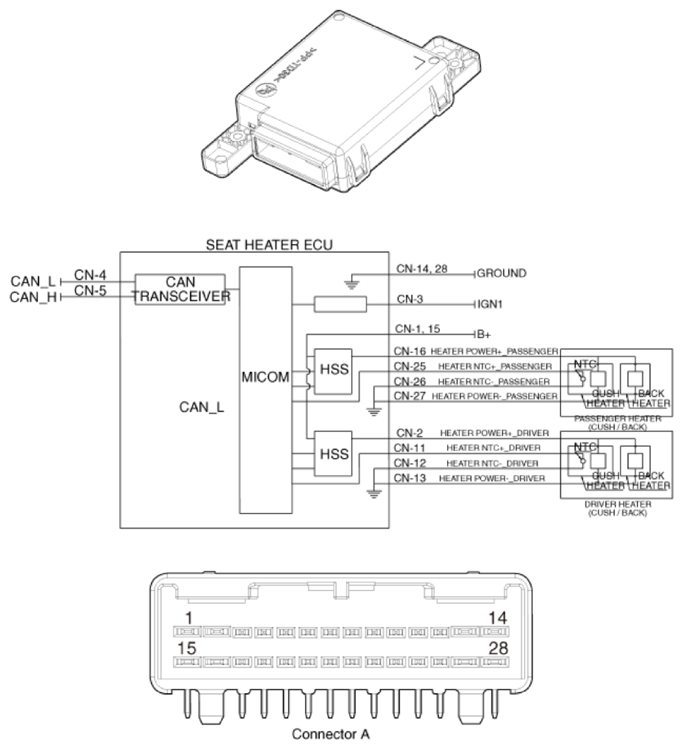

Front Seat
| No | Connector A |
|---|---|
| 1 | Battery (+) |
| 2 | Heater power (+) (Driver) |
| 3 | IGN 1 |
| 4 | CAN (Low) |
| 5 | CAN (High) |
| 6 | - |
| 7 | - |
| 8 | - |
| 9 | - |
| 10 | - |
| 11 | Heater NTC (+) (Driver) |
| 12 | Heater NTC (-) (Driver) |
| 13 | Heater power (-) (Driver) |
| 14 | Ground |
| 15 | Battery (+) |
| 16 | Heater power (+) (Passenger) |
| 17 | - |
| 18 | - |
| 19 | - |
| 20 | - |
| 21 | - |
| 22 | - |
| 23 | - |
| 24 | - |
| 25 | Heater NTC (+) (Passenger) |
| 26 | Heater NTC (-) (Passenger) |
| 27 | Heater power (-) (Passenger) |
| 28 | Ground |
