Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the passenger seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

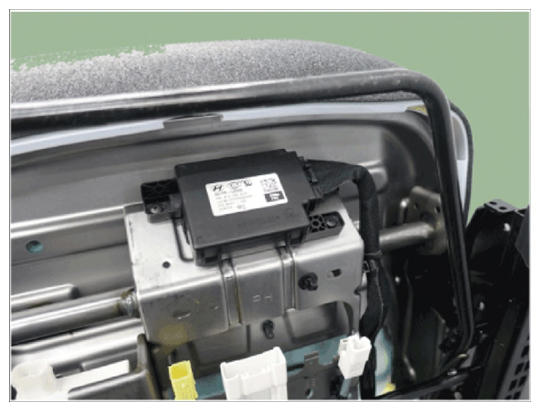

  3. Remove the heater ECU after loosening mounting screws and then disconnecting the connector.
G14526807Courtesy of HYUNDAI MOTOR AMERICA
