Repair Procedures: Inspection: Driver/Passenger

  1. Check for continuity and measure the resistance between terminals.

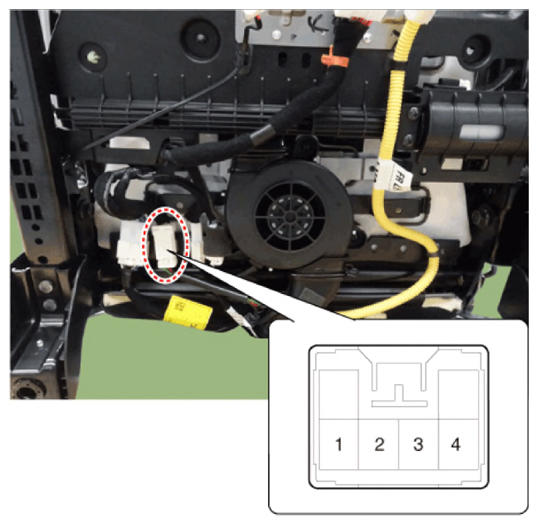

    G14526805Courtesy of HYUNDAI MOTOR AMERICA
    No Description No Description
    1 Heater (+) 3 NTC (-)
    2 NTC (+) 4 Heater (-)
    Driver/Passenger NTC Sensor (± 5%)
    High 6.456 kΩ
    Middle 8.303 kΩ
    Low 10.0 kΩ
  2. Operate the seat heater after connecting the connector, and then check the thermostat by measuring the temperature of seat surface.
    Driver/Passenger Cushion/Back (± 2°C)
    High 42/50°C
    Middle 39/45°C
    Low 36/40°C
