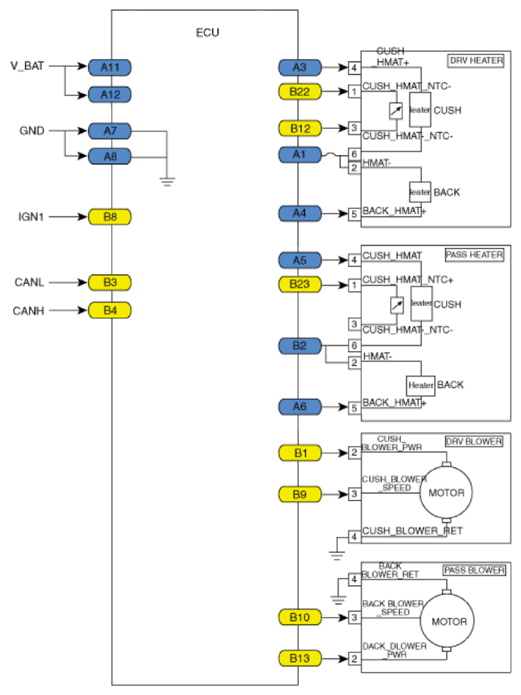

Home >> Hyundai >> 2020 >> Sonata SEL >> Repair and Diagnosis >> Accessories & Equipment >> Seats >> Seat Electrical (Except HEV) >> Seat Heater (Air Ventilation) >> Schematic Diagrams >> Circuit Diagram >> Front Seat
