Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat shield outer cover.

    (Refer to Body - "FRONT SEAT SHIELD OUTER COVER ")

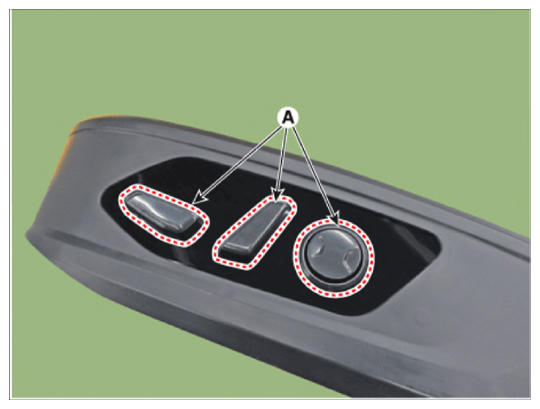

  3. Remove the switch knob (A).
    G14526791Courtesy of HYUNDAI MOTOR AMERICA

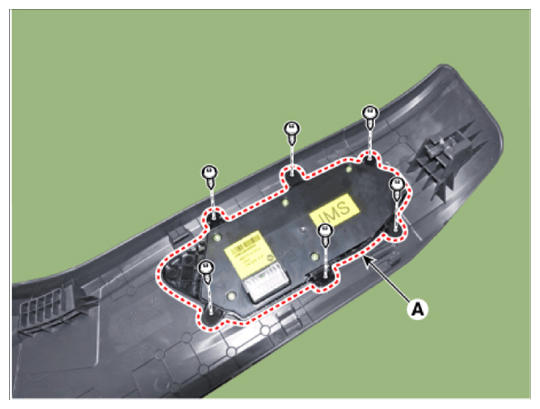

  4. Remove the power seat control switch (A) after loosening the screws.
    G14526792Courtesy of HYUNDAI MOTOR AMERICA
