Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat back cover.

    (Refer to Body - "FRONT SEAT BACK COVER ")

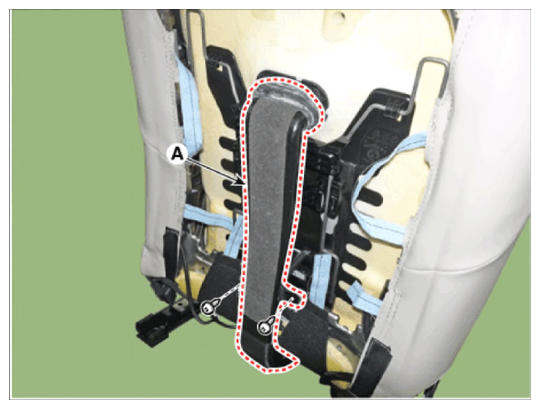

  3. Remove the air duct (A).
    G14526793Courtesy of HYUNDAI MOTOR AMERICA

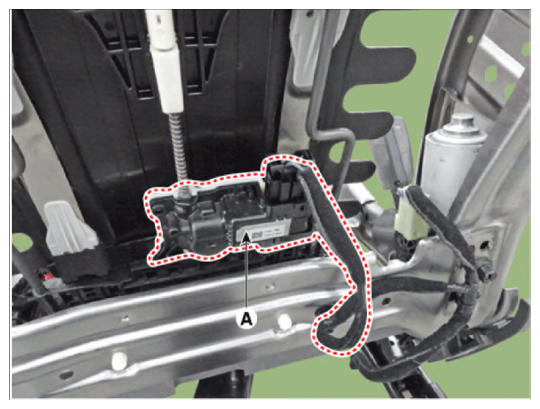

  4. Disconnect the lumbar support motor connector (A).
    G14526794Courtesy of HYUNDAI MOTOR AMERICA

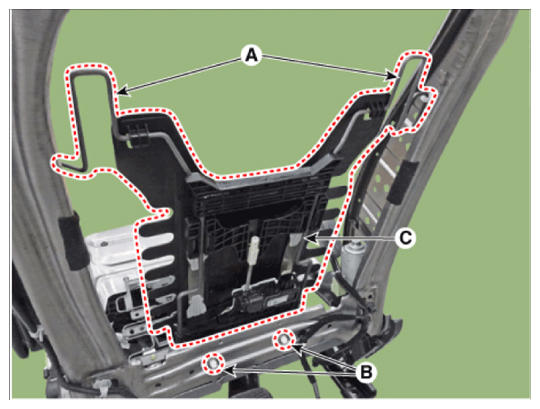

  5. Remove the lumbar support assembly (C) after removing the rod (A) & mounting fastener (B).
    G14526795Courtesy of HYUNDAI MOTOR AMERICA
