Cushion Blower

  1. Remove the front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

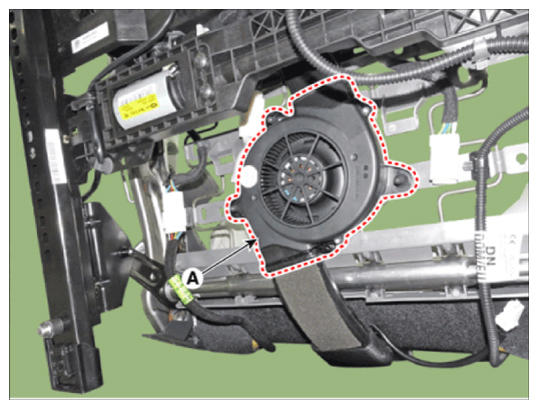

  2. Remove the cushion blower (A) after loosening the screws (3EA) and disconnecting the connector.
    G14526814Courtesy of HYUNDAI MOTOR AMERICA
