Air Ventilation Unit

  1. Remove the front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

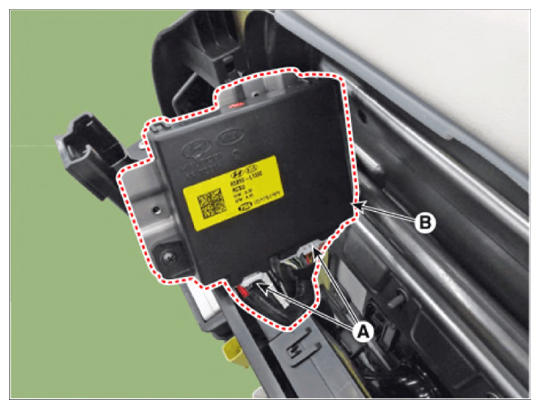

  2. Remove the air ventilation unit (B) after loosening the screws (2EA) and disconnecting the connector (A).
    G14526816Courtesy of HYUNDAI MOTOR AMERICA
