Air Duct

  1. Remove the front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

  2. Remove the seat back board.

    (Refer to Body - "FRONT SEAT BACK COVER ")

    CAUTION:
    • Grasp the both lower sides of back board with hands and then remove it in the direction of the arrow.
    • Be careful not to damage the fixing clips.

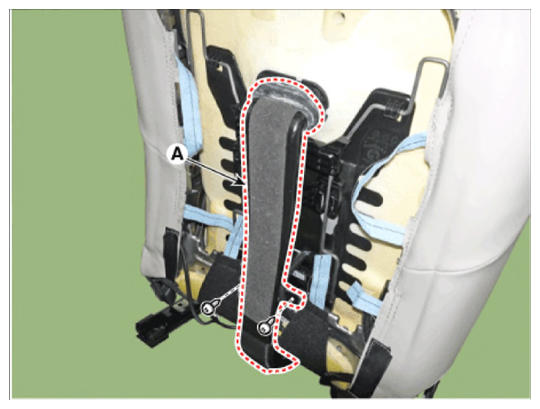

  3. Remove the air duct (A) after loosening the screws and disconnecting the connector.
    G14526815Courtesy of HYUNDAI MOTOR AMERICA
