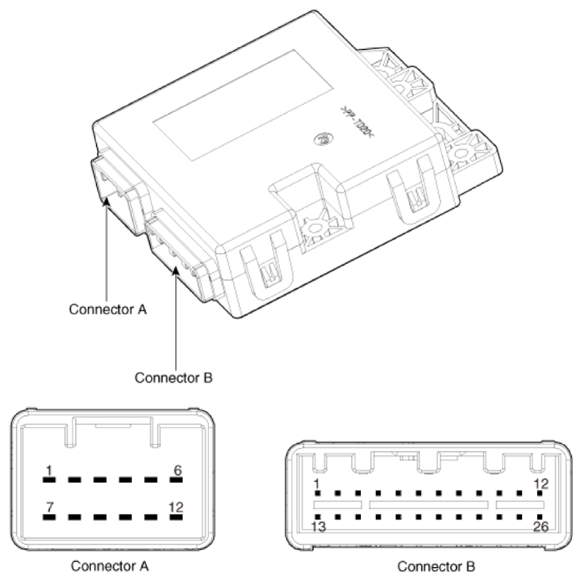

Air Ventilation Seat Control Unit

Courtesy of HYUNDAI MOTOR AMERICA

No	Connector A	Connector B
1	Heater power (-) (Driver)	Vent power (Driver)
2	Heater power (-) (Passenger)	-
3	Heater power cushion (Driver)	CAN (Low)
4	Heater power seat back (Driver)	CAN (High)
5	Heater power cushion (Passenger)	-
6	Heater power seat back (Passenger)	-
7	Ground	-
8	Ground	IGN 1
9	-	Vent blower speed (Driver)
10	-	Vent blower speed (Passenger)
11	Battery (+)	-
12	Battery (+)	Heater NTC (-)
13		Vent power (Passenger)
14		-
15		-
16		-
17		-
18		-
19		-
20		-
21		-
22		Heater NTC (+) (Driver)
23		Heater NTC (+) (Passenger)
