Repair Procedures: Replacement

Remove the rear seat assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

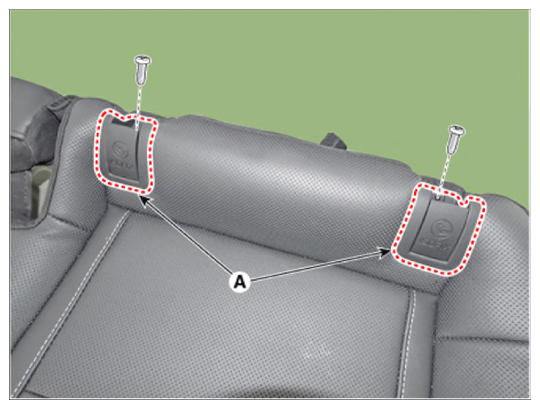

Loosen the mounting screws and remove the car seat fixing bracket (A).

Courtesy of HYUNDAI MOTOR AMERICA

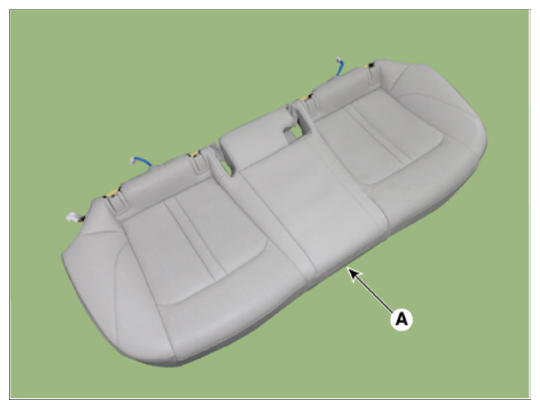

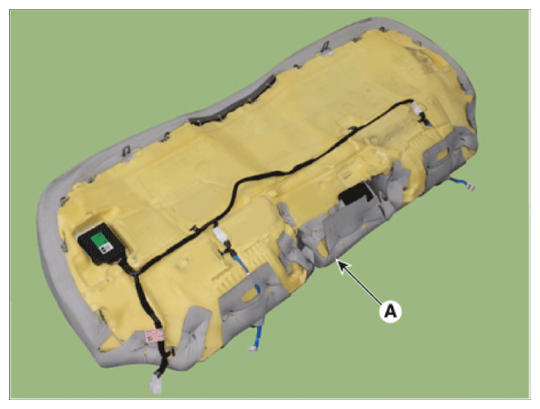

Remove the rear seat cushion cover hog-ring clips and remove the rear seat cushion cover (A).
CAUTION:
- Be careful not to deviate from the pads, insert wires, and aplix.
[Rear]

Courtesy of HYUNDAI MOTOR AMERICA

[Front]

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information

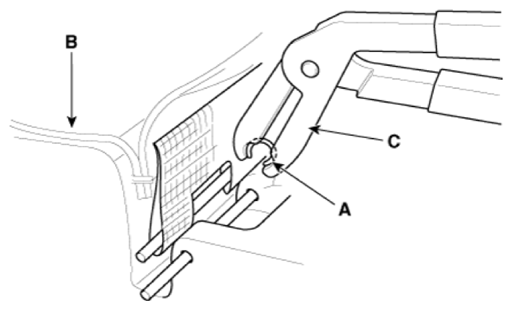

- To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A).
- Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).
Courtesy of HYUNDAI MOTOR AMERICA
