Repair Procedures: Replacement

Remove the rear seat assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

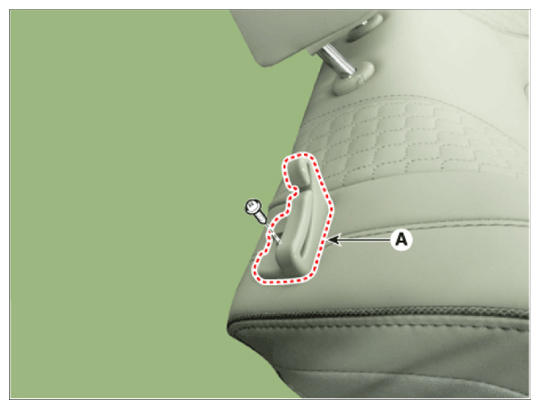

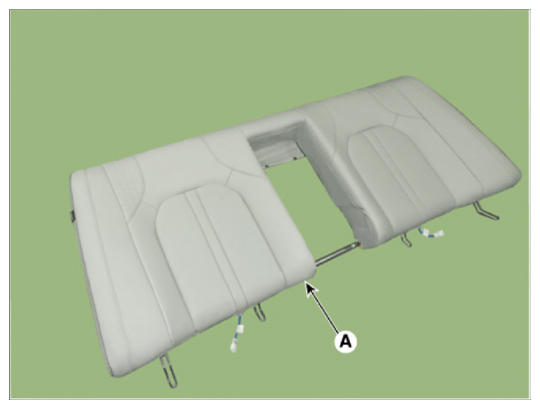

Loosen the mounting screw and remove the rear seat back webbing guide (A).

Courtesy of HYUNDAI MOTOR AMERICA

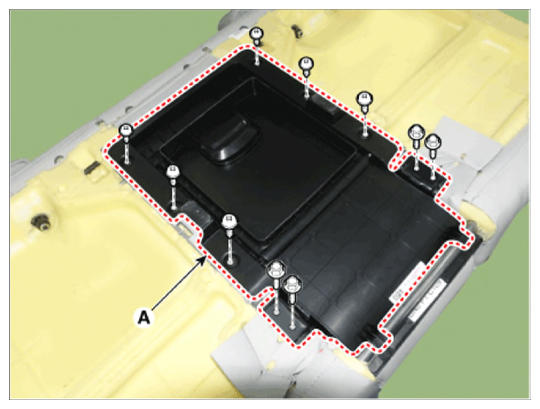

Loosen the mounting bolts, screws and remove the rear seat armrest (A).

Courtesy of HYUNDAI MOTOR AMERICA

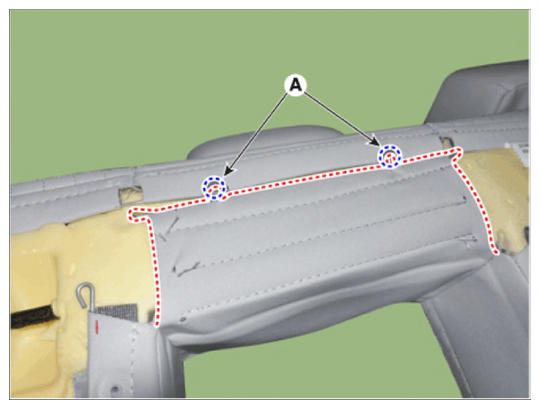

Remove the rear seat back cover inside hog-ring clips (A).

Courtesy of HYUNDAI MOTOR AMERICA

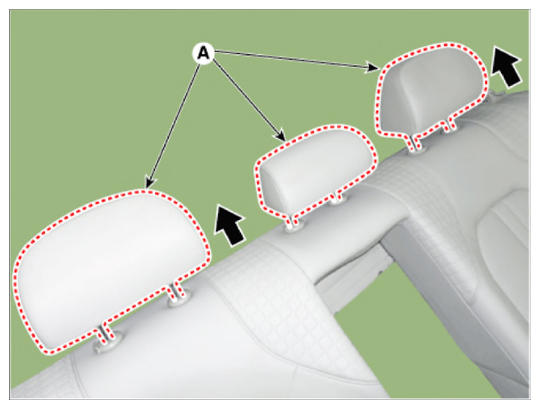

Press the lock pin and remove the headrest (A).

Courtesy of HYUNDAI MOTOR AMERICA

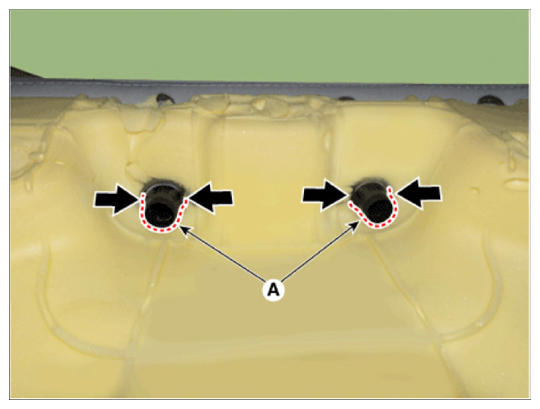

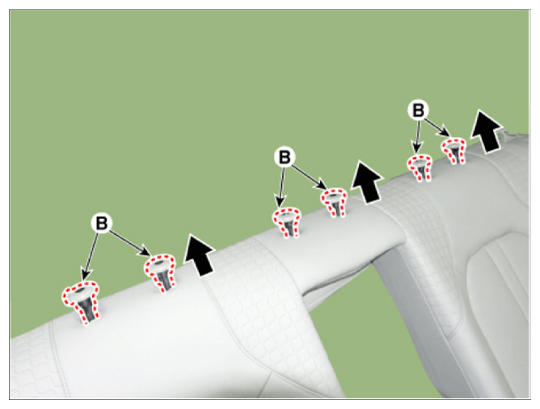

Press the lock pin (A) and remove the rear seat headrest guide (B).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

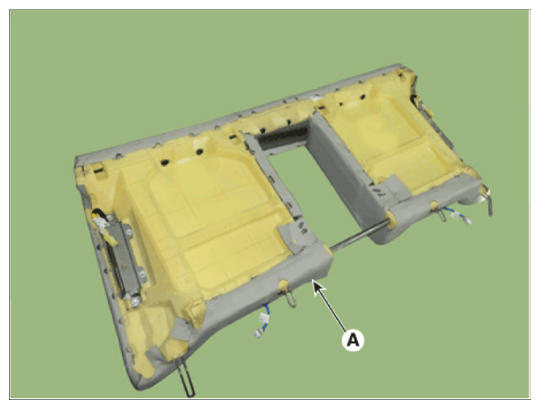

Remove the rear seat back cover hog-ring clips and remove the rear seat back cover (A).
CAUTION:
- Be careful not to deviate from the pads, insert wires, and aplix.
[Rear]

Courtesy of HYUNDAI MOTOR AMERICA

[Front]

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information

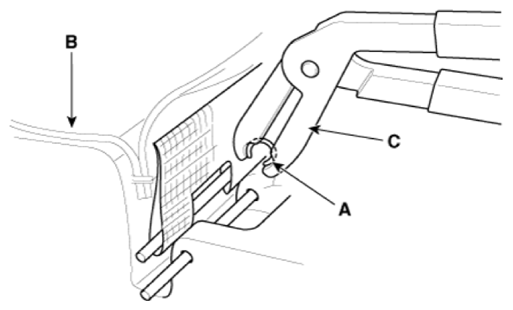

- To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A).
- Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).
Courtesy of HYUNDAI MOTOR AMERICA
