[Rear seat cushion assembly]

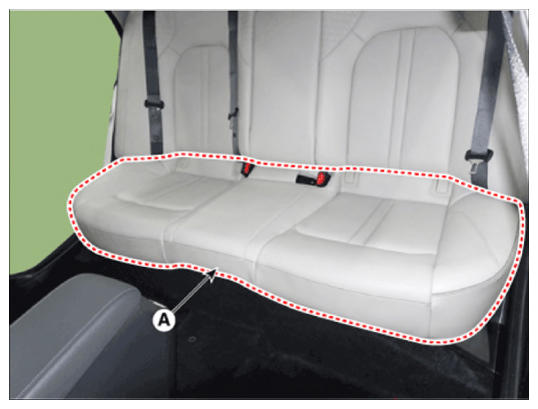

  1. Remove the rear seat cushion assembly (A) by lifting and pulling the front.
    G14526545Courtesy of HYUNDAI MOTOR AMERICA
  2. Separate the rear seat cushion heating connector (A) and rear seat extension connector (B).

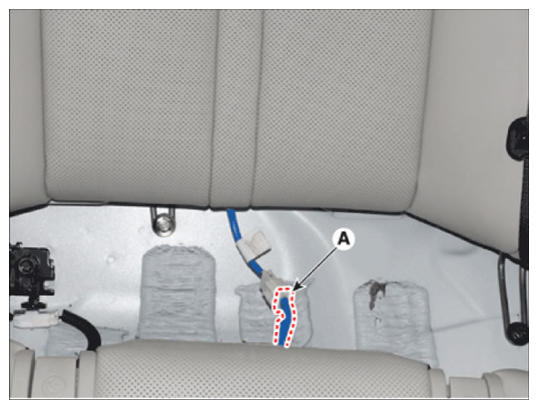

    [LH]

    G14526546Courtesy of HYUNDAI MOTOR AMERICA

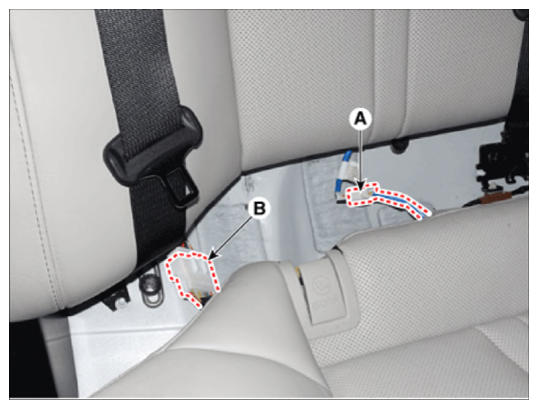

    [RH]

    G14526547Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse the removal procedure.

    Information

    • Make sure the connector is connected in properly.
