[Rear seat back assembly]

  1. Remove the rear seat cushion assembly.

    (Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

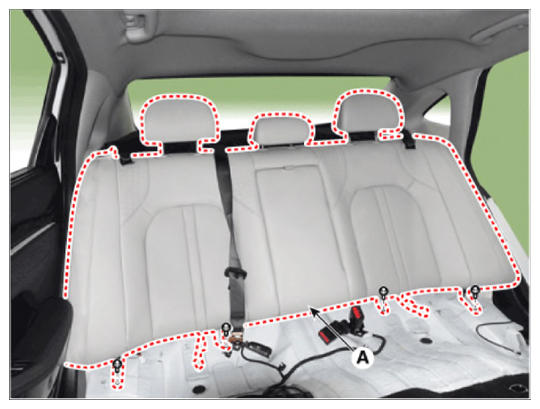

  2. Loosen the mounting bolts and pull the rear seat back assembly (A) upwards to remove.
    G14526548Courtesy of HYUNDAI MOTOR AMERICA
  3. Press the lock pin and separate the rear seat airbag connectors (A).
    G14526549Courtesy of HYUNDAI MOTOR AMERICA
  4. To install, reverse the removal procedure.

    Information

    • Make sure the connector is connected in properly.
