Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Take care not to scratch the body surface.
- Remove the front door trim.
(Refer to Front Door - "FRONT DOOR TRIM ")

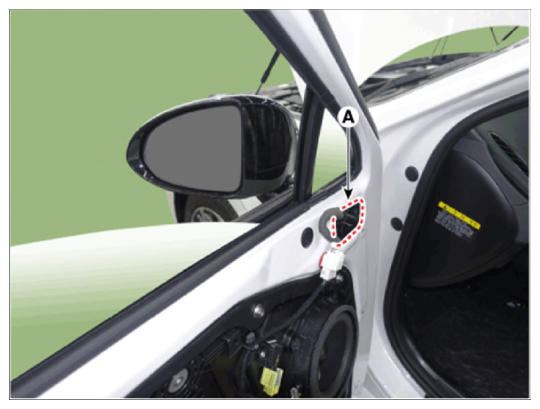

- Disconnect the outside rear view mirror connector (A).

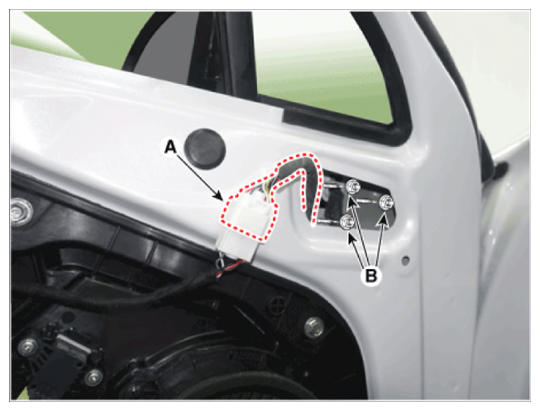

- Separate the outside rear view mirror connector (A), loosen the mounting nuts (B) and remove the outside rear view mirror.
Tightening torque:
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)
- To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin-type retainers).
