Repair Procedures: Replacement
CAUTION:
Put on gloves to prevent hand injuries.

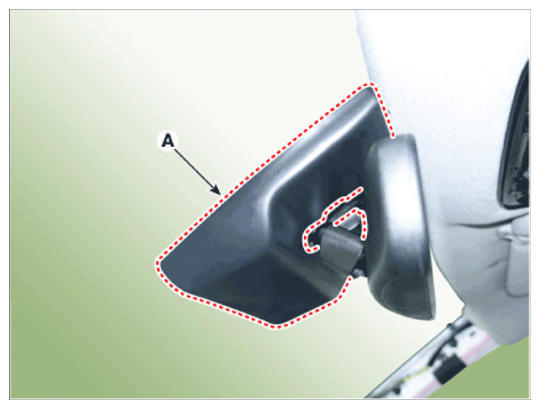

- Remove the inside rear view mirror cover (A).

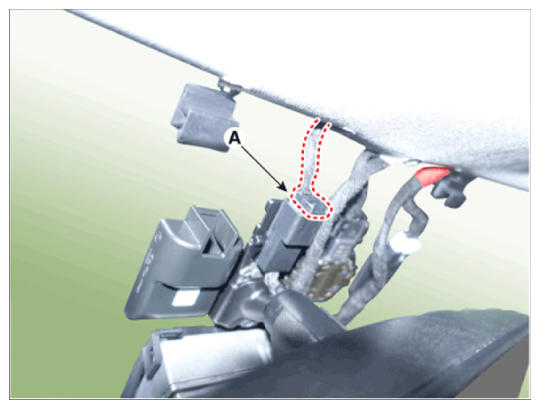

- Disconnect the ECM mirror connector (A).

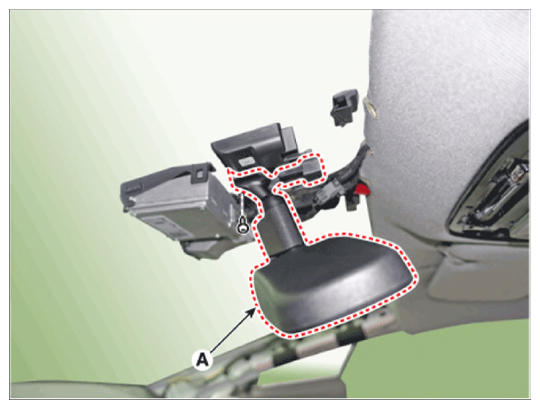

- Loosen the mounted screws and push the ECM mirror base upward to remove the ECM mirror assembly (A).
- To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Be careful not to damage the windshield glass.
