Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

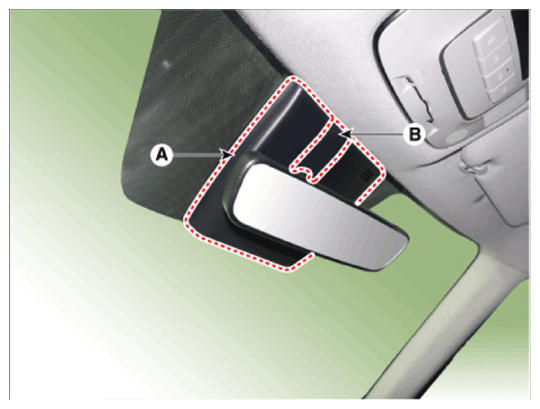

  2. Remove the mirror wiring cover (A) and (B).
    G14527034Courtesy of HYUNDAI MOTOR AMERICA

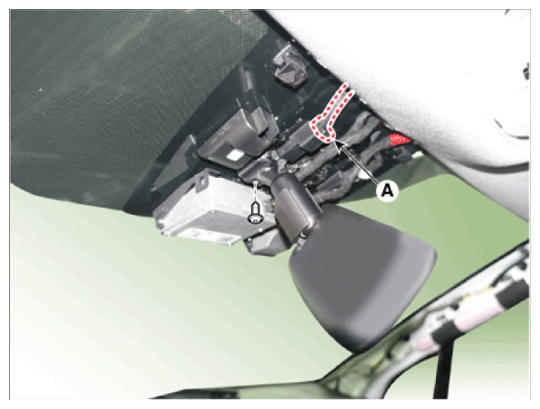

  3. Remove the mirror mounting screw and connector (A).
  4. Remove the mirror pulling up in the arrow direction.
    NOTE: Make sure not to damage the mounting bracket when removing the mirror.
    G14527035Courtesy of HYUNDAI MOTOR AMERICA
