Repair Procedures: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Put on gloves to prevent hand injuries.

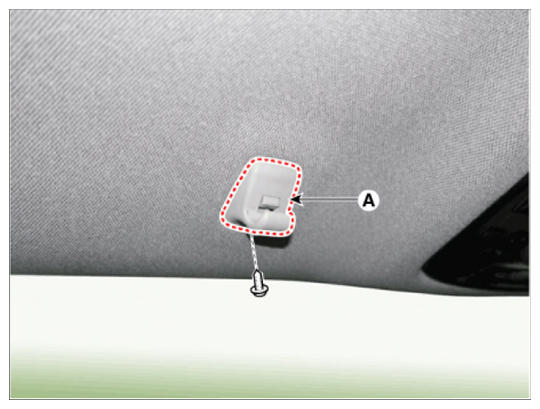

Remove the sunvisor mounting cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

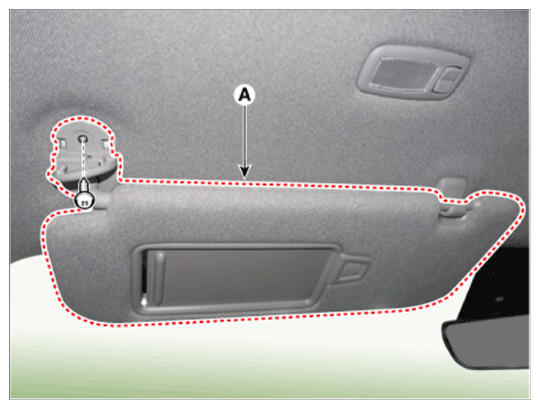

Loosen the mounting screws, and then remove the sunvisor (A).

Courtesy of HYUNDAI MOTOR AMERICA

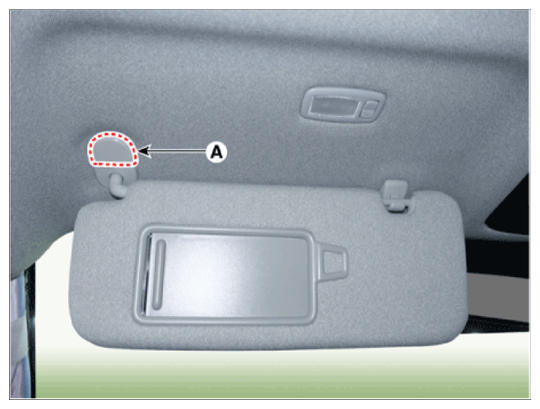

Loosen the mounting screws, and then remove the retainer (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
