Repair Procedures: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Put on gloves to prevent hand injuries.
- Remove the front seat.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")
- Remove the rear seat.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Remove the front pillar trim.
(Refer to Interior Trim - "FRONT PILLAR TRIM ")
- Remove the center pillar upper trim.
(Refer to Interior Trim - "CENTER PILLAR TRIM ")
- Remove the rear pillar trim.
(Refer to Interior Trim - "REAR PILLAR TRIM ")
- Remove the sunvisor and retainer.
(Refer to Roof Trim - "Sunvisor ")
- Remove the assist handle.
(Refer to Roof Trim - "Assist Handle ")
- Remove the overhead console lamp.
(Refer to Body Electrical System - "OVERHEAD CONSOLE LAMP ")
- Remove the room lamp.
(Refer to Body Electrical System - "ROOM LAMP ")

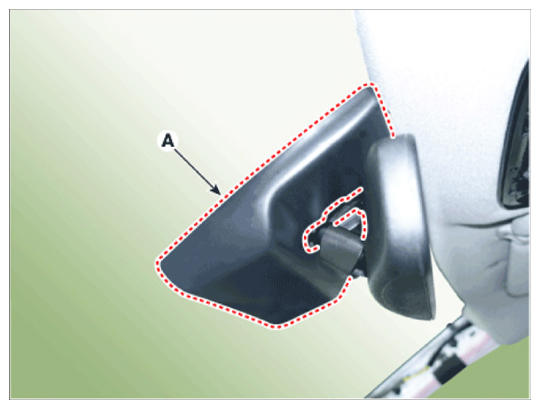

- Using a screwdriver or remover, remove the inside rear view mirror cover (A).

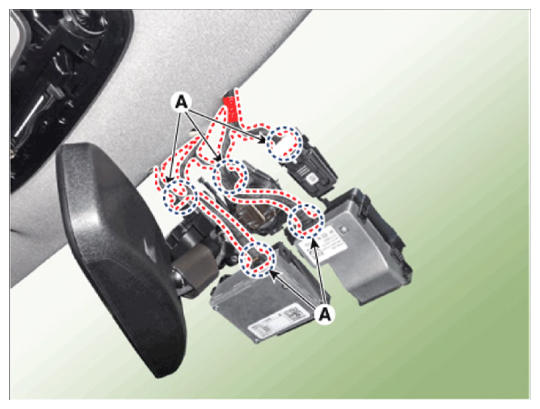

- Disconnect the connector (A).

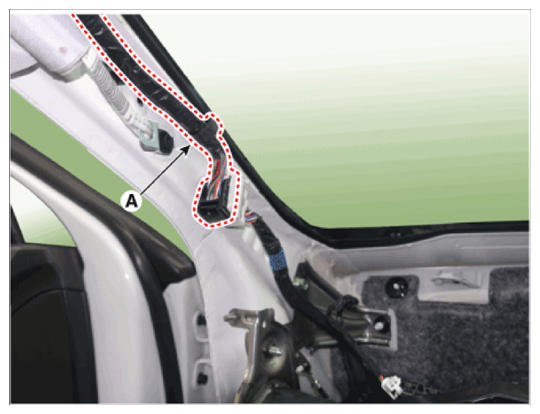

- Disconnect the roof trim main connector (A) and the mounting clips in the front pillar.
- Remove the rear window glass.
(Refer to REMOVAL Body (Interior and Exterior) - "Rear Window Glass")

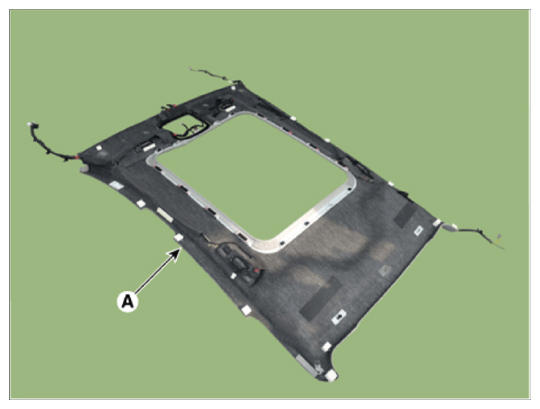

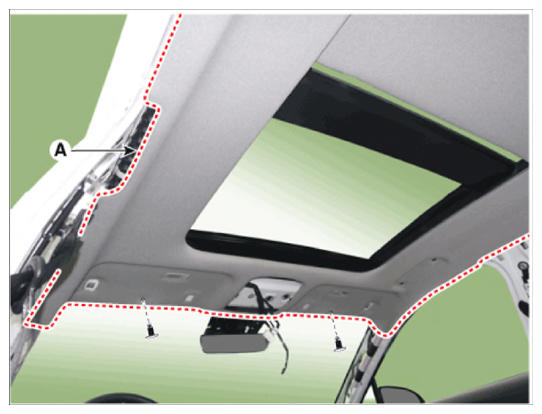

- Remove the roof trim mounting clip and remove the roof trim assembly (A).NOTE:
- Be careful not to wrinkle on the roof trim.
- Remove roof trim wiring harness from the roof trim (A).NOTE:
- Take care not to damage the roof trim wiring harness when removing.
Information
- When installing the roof trim wiring harness on the roof trim (A), apply the hot melt continuously by using the hot melt gun tool.
- Put anti-noise pad on roof trim (A) to prevent the noise.
- To install, reverse the removal procedure.
Information
- Make sure the connector is connected in properly.
- Replace any damaged clips.
